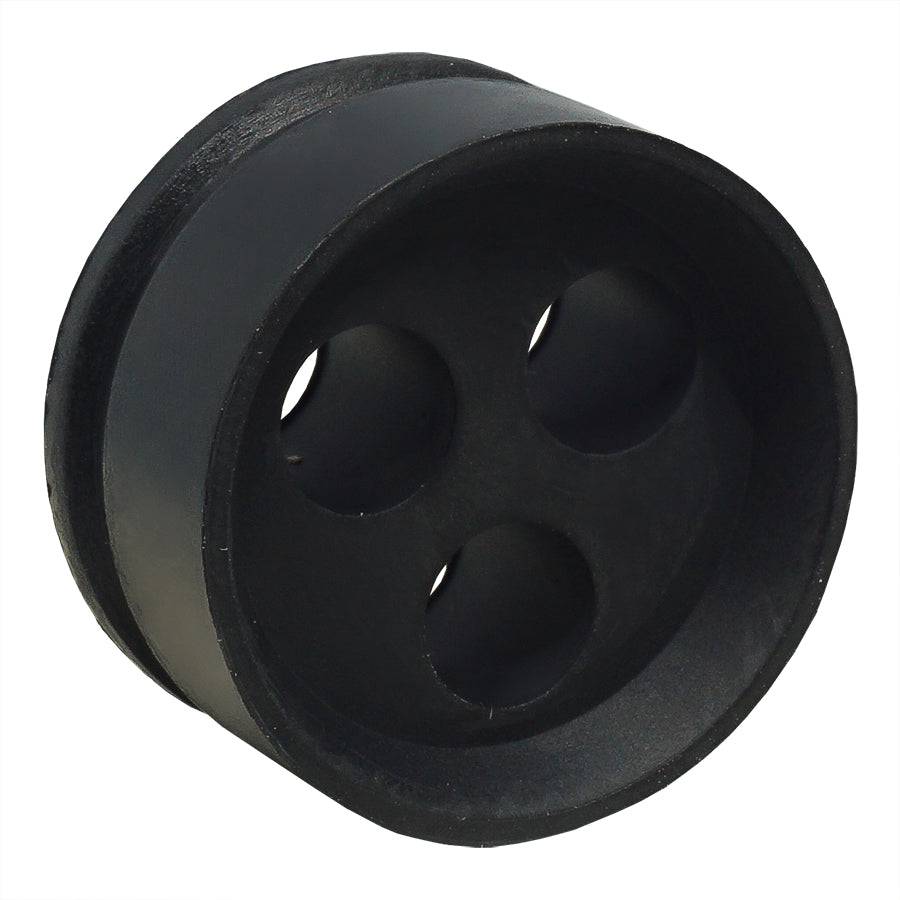

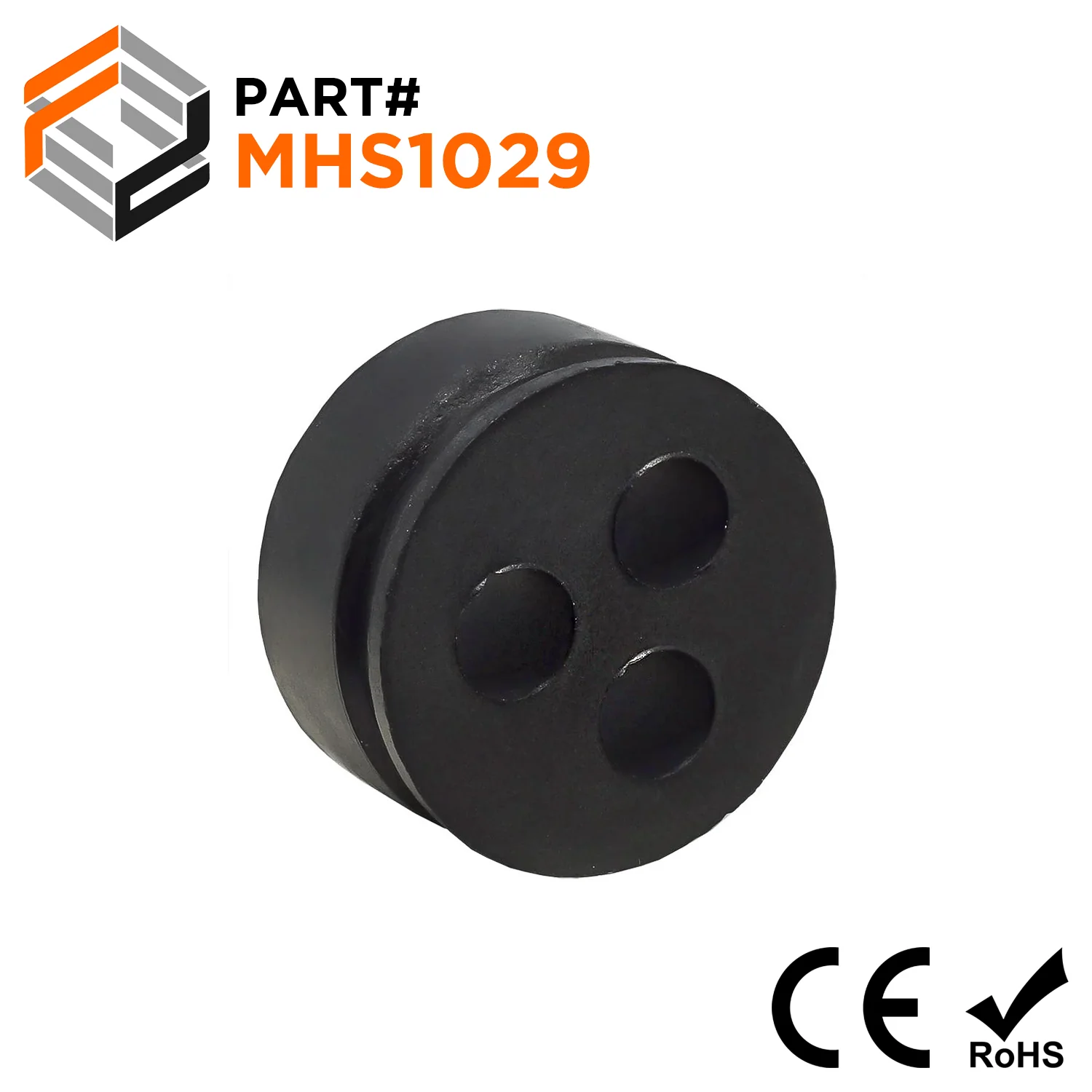

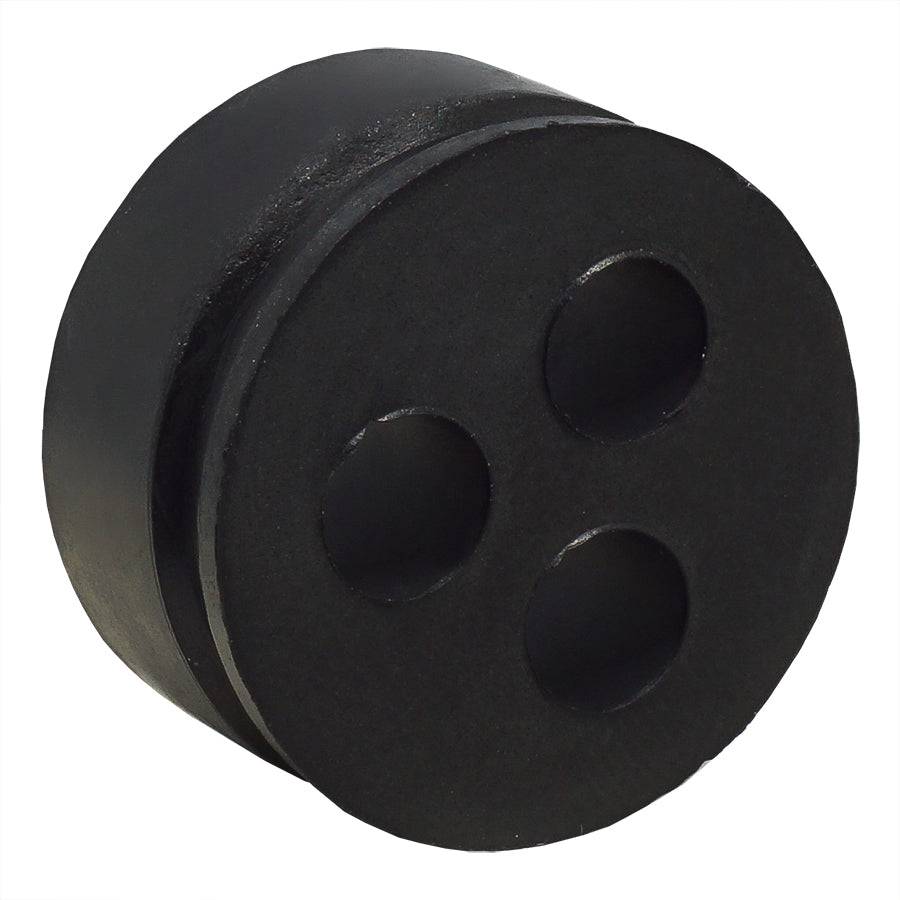

MHS1029 - Cable Gland Multi Hole Seals, Sizes: NPT3/4", PG21, M25, 3-Hole x 6mm, IP68, 1 Piece
MULTIPLE HOLE CABLE GLAND SEALS
Multiple hole cable glands seals (also known as cord grip seals) are designed for passing and sealing multiple wires through a single cable gland. Save space and time by limiting the number of glands used for entry into your panel box, enclosure, or combiner box.
DIMENSIONS & FEATURES:
| Compatible Gland Sizes: | NPT3/4", PG21/M25 |
| Holes: | 3 Holes |
| Hole Diameter (D): | 6mm (0.24") |
| Length (L): | 11.9mm (0.47") |
| Width (W): | 23mm (0.91") |
| Seal Material: | NBR (Nitrile Rubber) |
| Ingress Protection: | IP68 |
| REACH Compliant: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
PRODUCT DRAWING:
DOCUMENT FILE:
