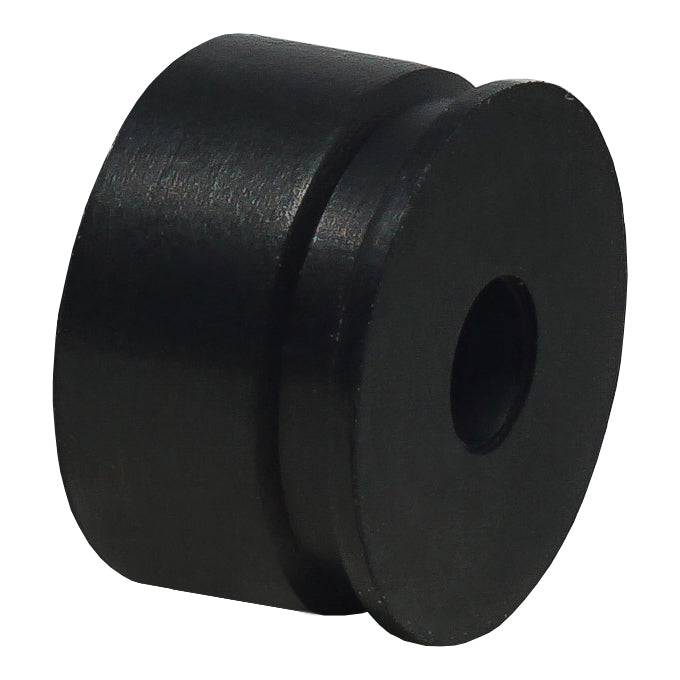

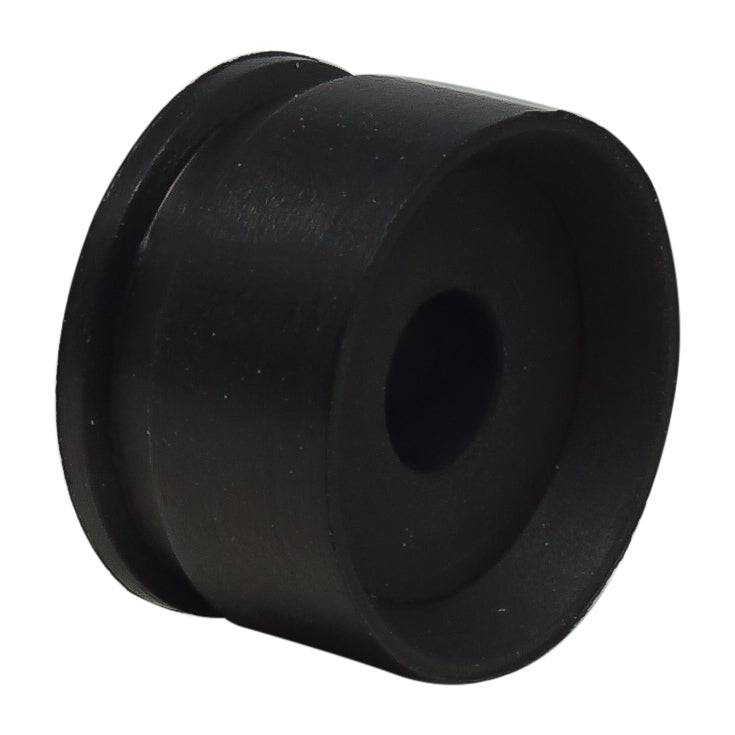

MHS1008 - Cable Gland Multi Hole Seals, Sizes: NPT1/2", PG13.5, M20S, 1-Hole x 5mm, IP68, 1 Piece
MULTIPLE HOLE CABLE GLAND SEALS
Multiple hole cable glands seals (also known as cord grip seals) are designed for passing and sealing multiple wires through a single cable gland. Save space and time by limiting the number of glands used for entry into your panel box, enclosure, or combiner box.
DIMENSIONS & FEATURES:
| Compatible Gland Sizes: | NPT1/2", PG13.5, M20S |
| Holes: | 1 Hole |
| Hole Diameter (D): | 5.0mm (0.20") |
| Length (L): | 9.5mm (0.37") |
| Width (W): | 15.6mm (0.61") |
| Seal Material: | NBR (Nitrile Rubber) |
| Ingress Protection: | IP68 |
| REACH Compliant: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
PRODUCT DRAWING:
DOCUMENT FILE:
$0.11
Original: $0.36
-69%MHS1008 - Cable Gland Multi Hole Seals, Sizes: NPT1/2", PG13.5, M20S, 1-Hole x 5mm, IP68, 1 Piece—
$0.36
$0.11Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
MULTIPLE HOLE CABLE GLAND SEALS
Multiple hole cable glands seals (also known as cord grip seals) are designed for passing and sealing multiple wires through a single cable gland. Save space and time by limiting the number of glands used for entry into your panel box, enclosure, or combiner box.
DIMENSIONS & FEATURES:
| Compatible Gland Sizes: | NPT1/2", PG13.5, M20S |
| Holes: | 1 Hole |
| Hole Diameter (D): | 5.0mm (0.20") |
| Length (L): | 9.5mm (0.37") |
| Width (W): | 15.6mm (0.61") |
| Seal Material: | NBR (Nitrile Rubber) |
| Ingress Protection: | IP68 |
| REACH Compliant: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
PRODUCT DRAWING:
DOCUMENT FILE:
