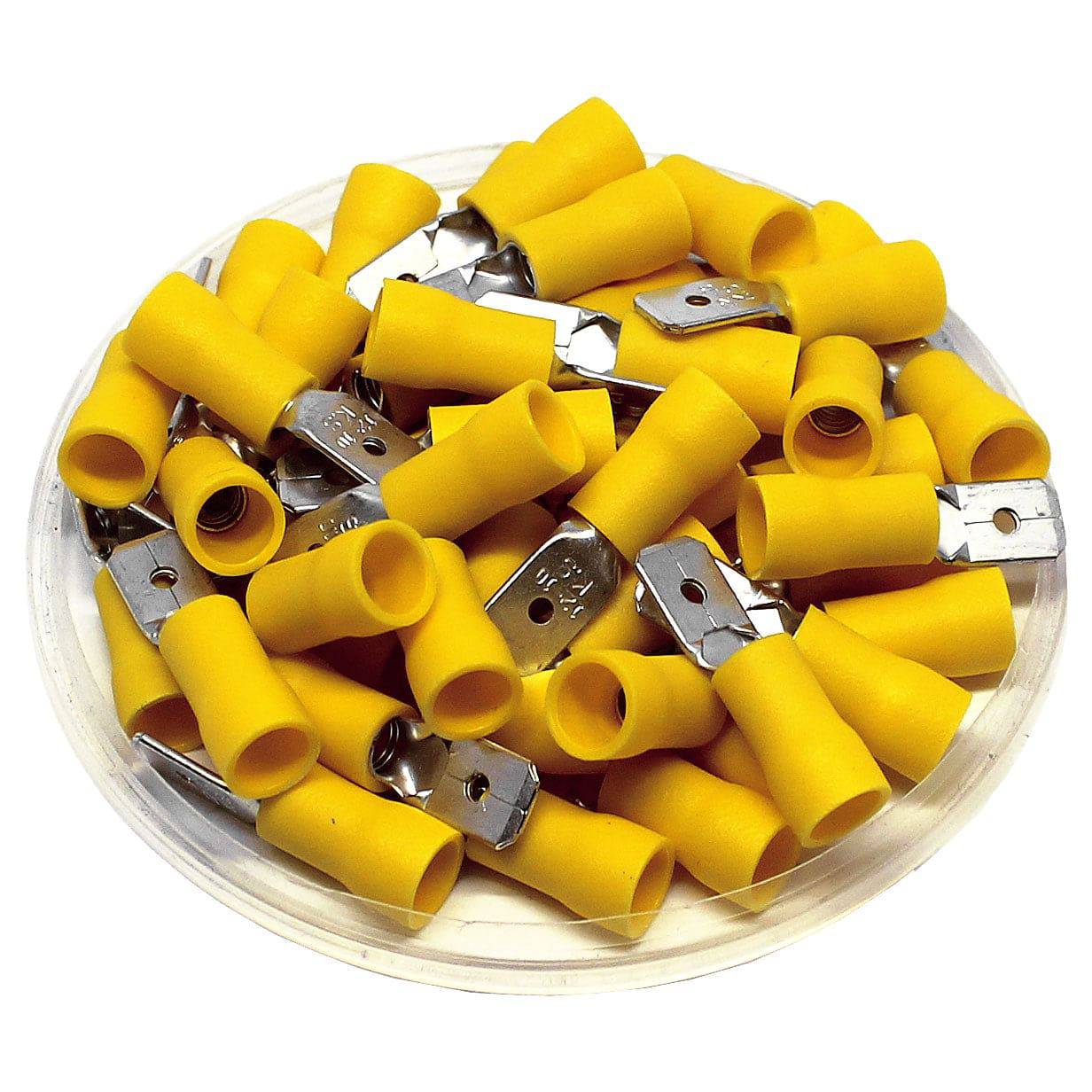

MDV5-250 - 12 to 10 AWG Vinyl PVC Insulated Quick Disconnects, Male, Yellow, 100 Pieces
Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation.
Dimensions & Features:
| Wire Size: | 12-10 AWG |
| Color: | Yellow |
| Terminal Material: | Tin-Plated Copper |
| Terminal Insulation: | Vinyl |
| Voltage Rating: | 300 Volts |
| Temperature Rating: | 75oC |
| NEMA Tab: | 0.8mm X 6.35mm (0.32" X 0.25") |
| L: | 24.0mm (0.95") |
| F: | 7.7mm (0.30") |
| W: | 13.0mm (0.51") |
| T: | 6.4mm (0.25") |
| B: | 5.5mm (0.22") |
| D: | 3.4mm (0.13") |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:
None:
Documents
Click to view product spec sheet:
Videos
Check out our YouTube channel!
$2.06
Original: $6.88
-70%MDV5-250 - 12 to 10 AWG Vinyl PVC Insulated Quick Disconnects, Male, Yellow, 100 Pieces—
$6.88
$2.06Product Information
Product Information
