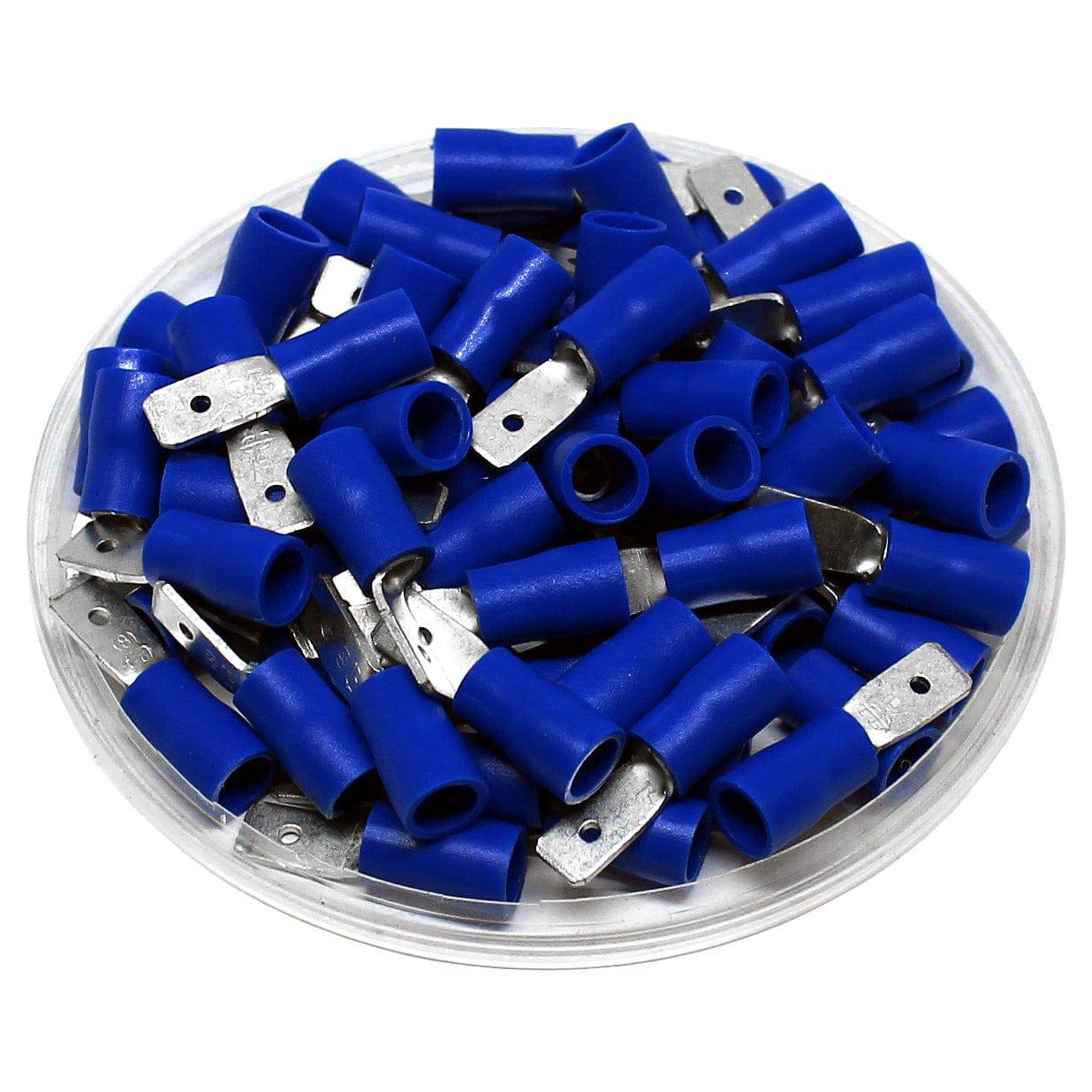

MDV2-187(8) - Vinyl Insulated Quick Disconnect - 16 AWG to 14 AWG - Male
Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 16-14 AWG |
| Color: | Blue |
| Terminal Insulation: | Vinyl |
| Terminal Material: | Tin-Plated Copper |
| Nema Tab: | 0.8 x 4.75mm (0.032 x 0.18") |
| Temperature Rating: | 75°C |
| Voltage Rating: | 300 Volts |
| L: | 20.0mm (0.79") |
| F: | 6.7mm (0.26") |
| B: | 10.2mm (0.39") |
| W: | 4.8mm (0.19") |
| D: | 4.3mm (0.17") |
| C: | 2.3mm (0.09") |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!$4.67
