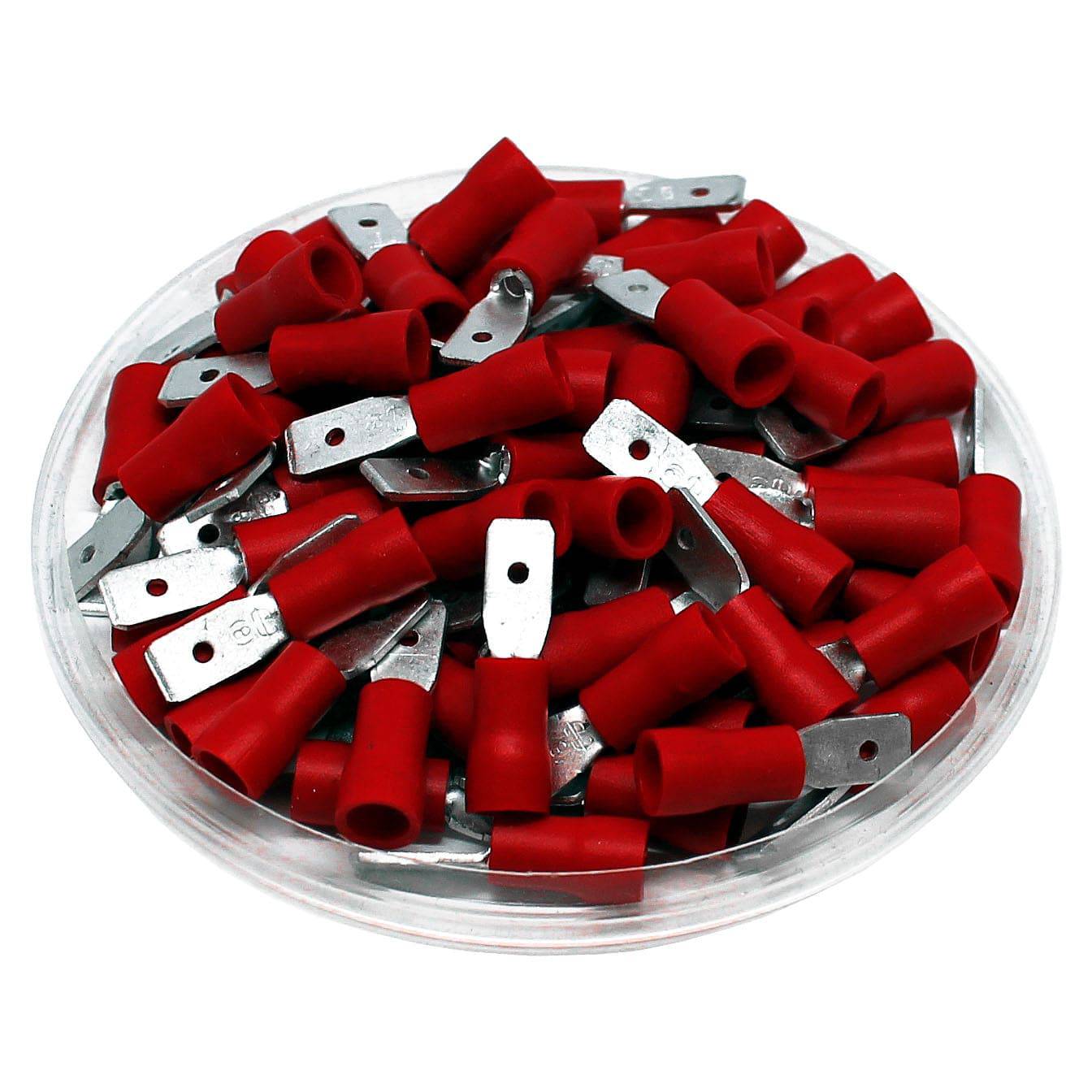

MDV1-187(8) - Vinyl Insulated Quick Disconnect - 22 AWG to 16 AWG - Male
Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 22-16 AWG |
| Color: | Red |
| Terminal Insulation: | Vinyl |
| Terminal Material: | Tin-Plated Copper |
| Nema Tab: | 0.8 x 2.8mm (0.032 x 0.11") |
| Temperature Rating: | 75°C |
| Voltage Rating: | 300 Volts |
| L: | 17.7mm (0.70") |
| F: | 6.5mm (0.26") |
| B: | 10.0mm (0.39") |
| W: | 2.8mm (0.11") |
| D: | 4.3mm (0.17") |
| C: | 1.7mm (0.07") |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
