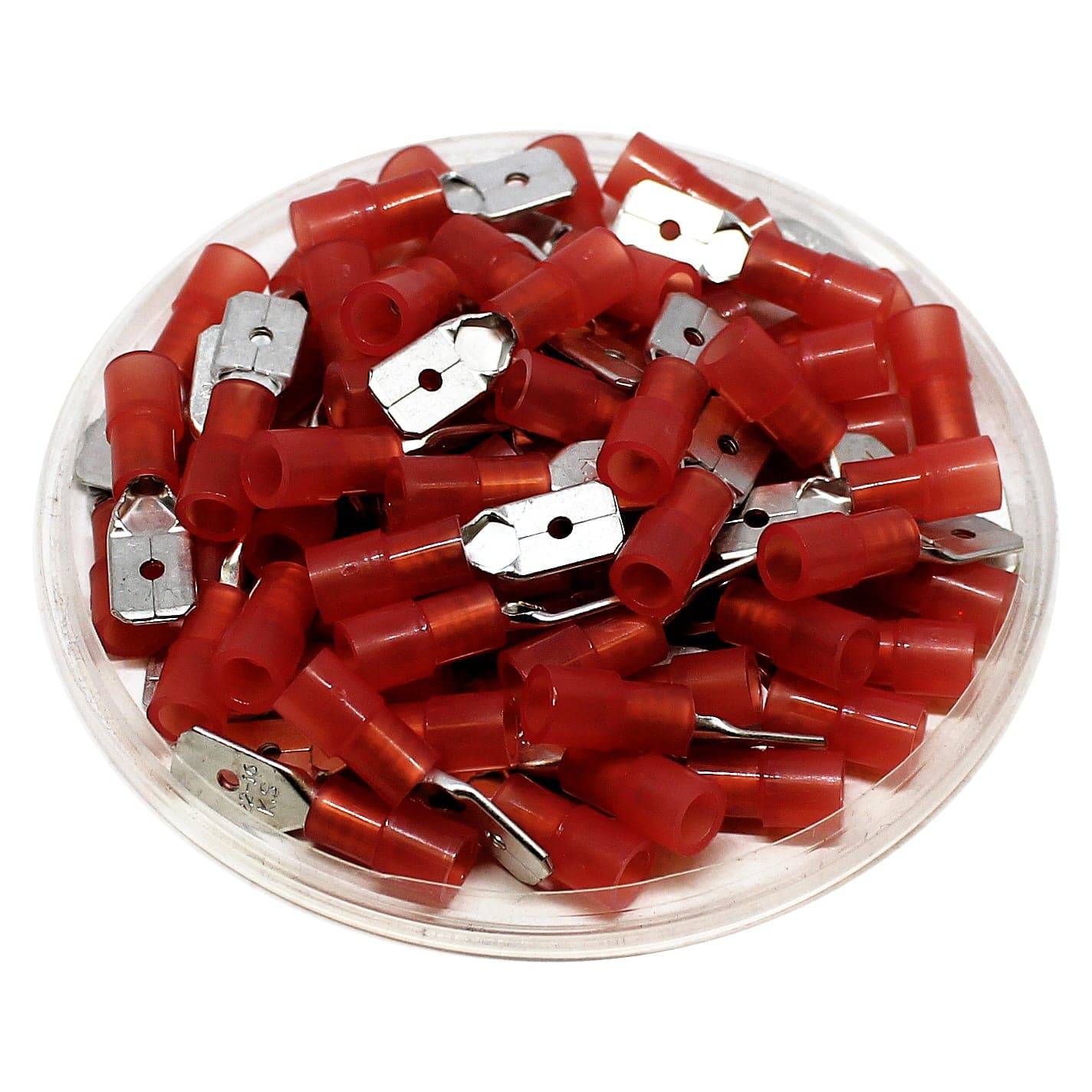

MDNY1-250 - 22 to 16 AWG Nylon Insulated Quick Disconnects, Male, Red, 100 Pieces
Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation.
Dimensions & Features:
Product Drawing:
Thomas & Betts: KN18-250MD-M KN18250MDM
Dimensions & Features:
| Wire Size: | 22-16 AWG |
| Color: | Red |
| Terminal Insulation: | Nylon |
| Terminal Material: | Tin-Plated Brass |
| Nema Tab: | 0.8 x 6.35mm (0.03 x 0.25") |
| Temperature Rating: | 75°C |
| Voltage Rating: | 300 Volts |
| Max Electrical Rating: | 10 AMP |
| T: | 0.40mm (0.02") |
| L: | 22.0mm (0.87") |
| F: | 7.6mm (0.30") |
| B: | 11.0mm (0.43") |
| W: | 6.4mm (0.25") |
| D: | 4.0mm (0.16") |
| C: | 1.7mm (0.07") |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:Thomas & Betts: KN18-250MD-M KN18250MDM
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!$7.27
MDNY1-250 - 22 to 16 AWG Nylon Insulated Quick Disconnects, Male, Red, 100 Pieces—
$7.27
