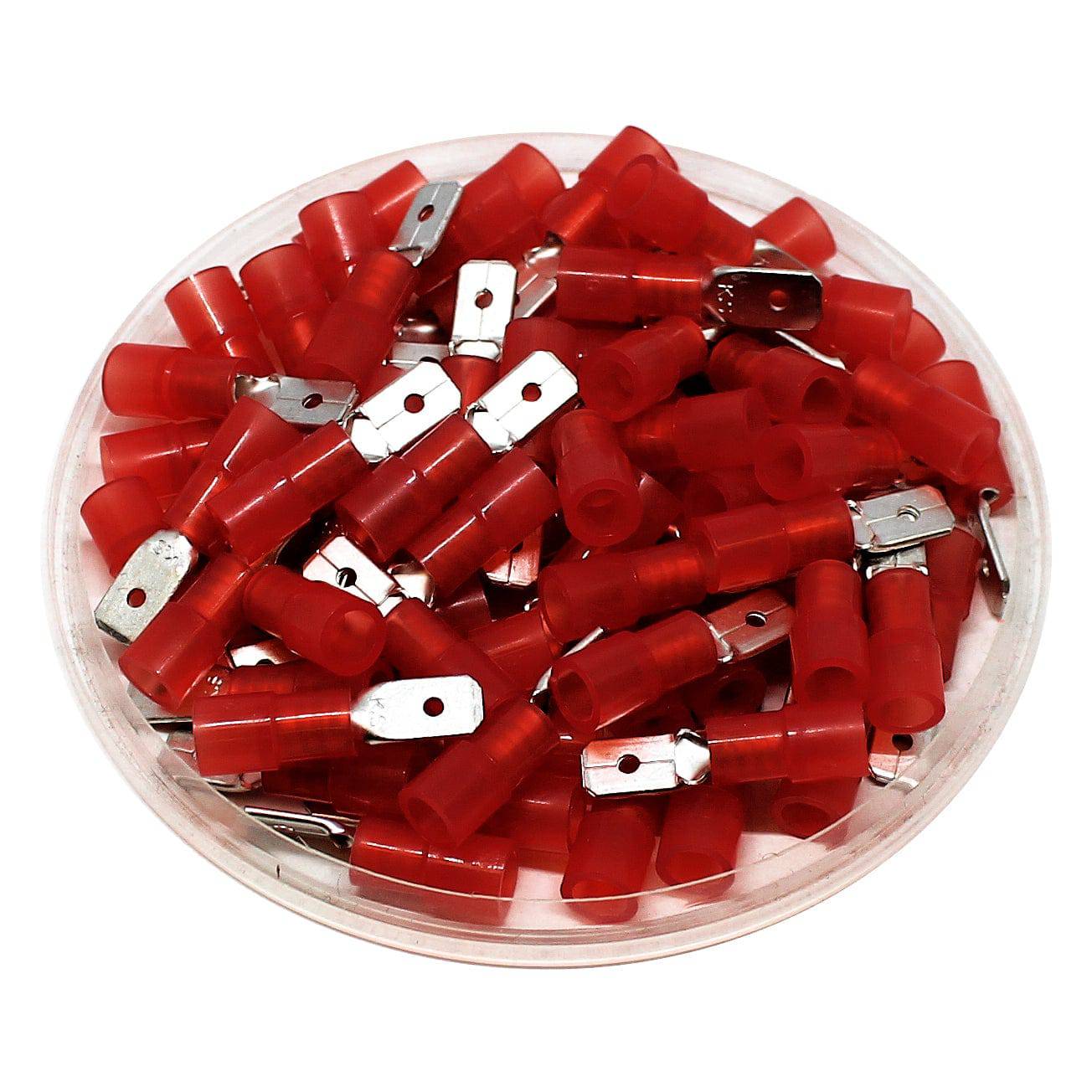

MDNY1-187(8) - MALE 22-16AWG Quick Disconnects Nylon
Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 22-16 AWG |
| Color: | Red |
| Terminal Insulation: | Nylon |
| Terminal Material: | Tin-Plated Brass |
| Nema Tab: | 0.8 x 4.75mm (0.032 x 0.18") |
| Temperature Rating: | 75°C |
| Voltage Rating: | 300 Volts |
| Max Electrical Current: | 10AMP |
| T: | 0.4mm (0.02") |
| L: | 20.0mm (0.79") |
| F: | 6.5mm (0.26") |
| B: | 11.0mm (0.43") |
| W: | 4.8mm (0.19") |
| D: | 4.0mm (0.16") |
| C: | 1.7mm (0.07") |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
