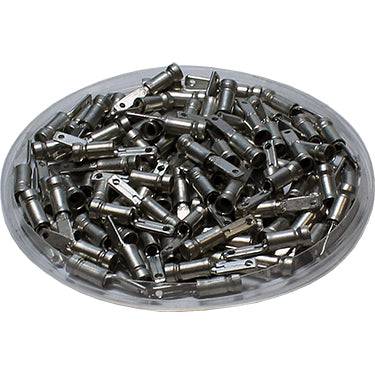

MDND1-110(8) Non Insulated Quick Disconnect - 22-16AWG
Non insulated quick disconnects create a splice when fitted together or can terminate a connection to a terminal block. Quick disconnects be connected or disconnected without damage to the terminal or wire. without the use of tools.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Range: | 22-16 AWG |
| L: | 17.2mm (0.68") |
| F: | 6.5mm (0.26") |
| E: | 8.5mm (0.33") |
| W: | 2.8mm (0.11") |
| D1: | 1.7mm (0.07") |
| D: | 3.4mm (0.13") |
| Nema Tab: | 0.03" X 0.11" (0.8mm X 2.8mm) |
| Terminal Material: | Brass |
| AMP Rating: | 10 AMP |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view the product spec sheet:Videos
Click to view our YouTube channel!$2.11
Original: $7.02
-70%MDND1-110(8) Non Insulated Quick Disconnect - 22-16AWG—
$7.02
$2.11Product Information
