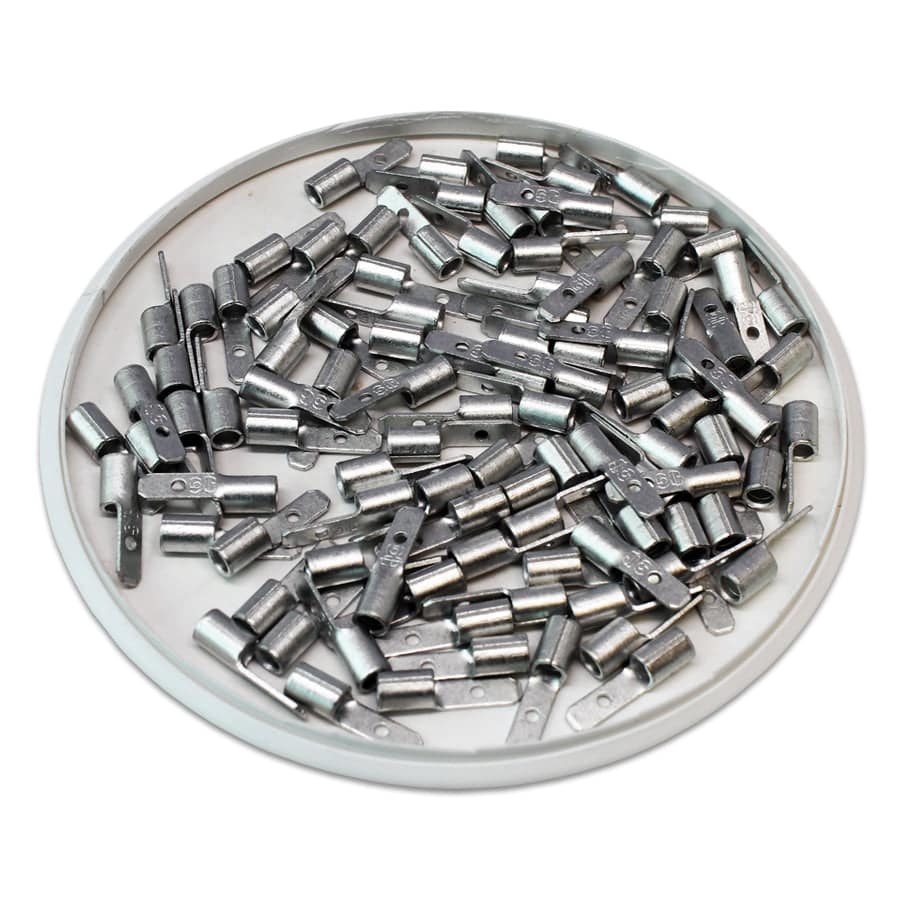

MDN2-110(8) - 16-14AWG .110(8) Uninsulated Male Quick Disconnect 100/pk
Non insulated quick disconnects create a splice when fitted together or can terminate a connection to a terminal block. Quick disconnects be connected or disconnected without damage to the terminal or wire. without the use of tools.
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
| Wire Size: | 16-14 AWG |
| Nema Tab: | 0.8 x 2.8mm (0.03 x 0.11") |
| Max Eletrical Current: | 15AMP |
| Terminal Material: | Brass |
| Surface Material: | Tin-Plated |
| L: | 12.6mm (0.50") |
| F: | 7.8mm (0.31") |
| E: | 5.2mm (0.20") |
| W: | 2.8mm (0.11") |
| D1: | 2.4mm (0.09") |
| D: | 3.4mm (0.13") |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!$1.23
Original: $4.09
-70%MDN2-110(8) - 16-14AWG .110(8) Uninsulated Male Quick Disconnect 100/pk—
$4.09
$1.23Product Information
