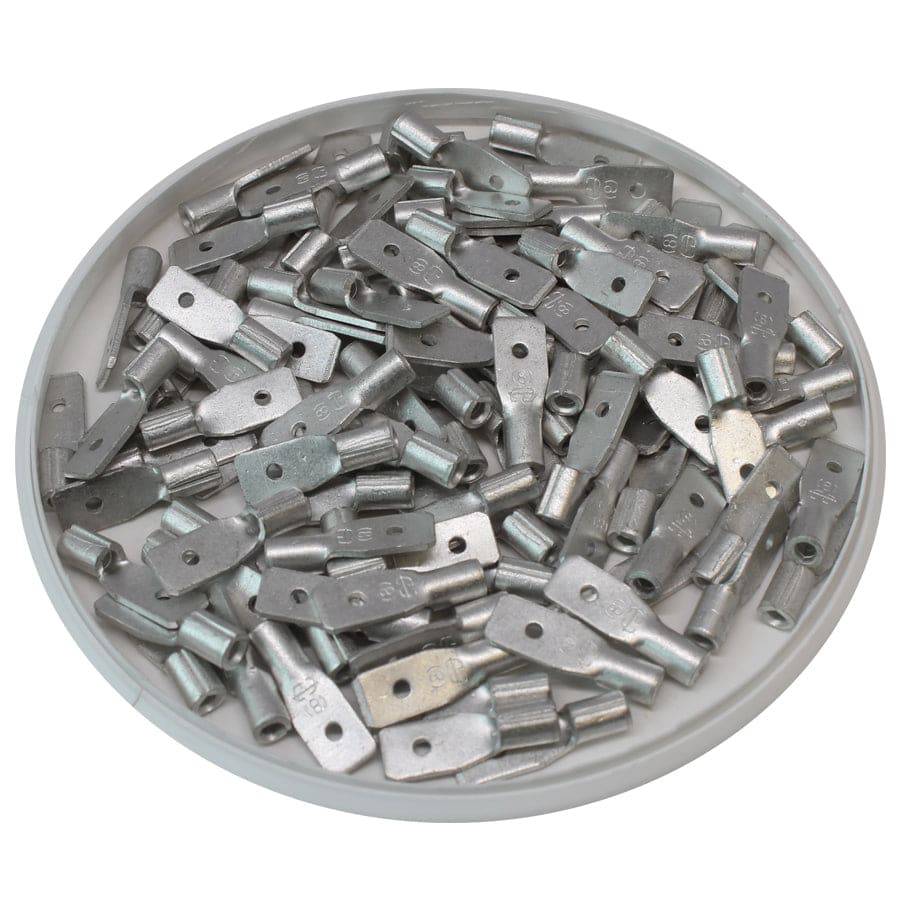

MDN1-187(8) - 22-16AWG .187(8) Uninsulated Male Quick Disconnect 100/pk
Non insulated quick disconnects create a splice when fitted together or can terminate a connection to a terminal block. Quick disconnects be connected or disconnected without damage to the terminal or wire. without the use of tools.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 22-16 AWG |
| L: | 14.8mm (.58") |
| F: | 9.8mm (.39") |
| E: | 5.4mm (.21") |
| W: | 4.7mm (.19") |
| D1: | 1.7mm (.07") |
| D: | 2.8mm (.11") |
| Nema Tab: | 0.8mm x 4.75mm (0.032" x 0.187") |
| Material: | Tin Plated Brass |
| UL Approved: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
| Max Electrical Current: | 10A |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!$1.44
Original: $4.81
-70%MDN1-187(8) - 22-16AWG .187(8) Uninsulated Male Quick Disconnect 100/pk—
$4.81
$1.44Product Information
