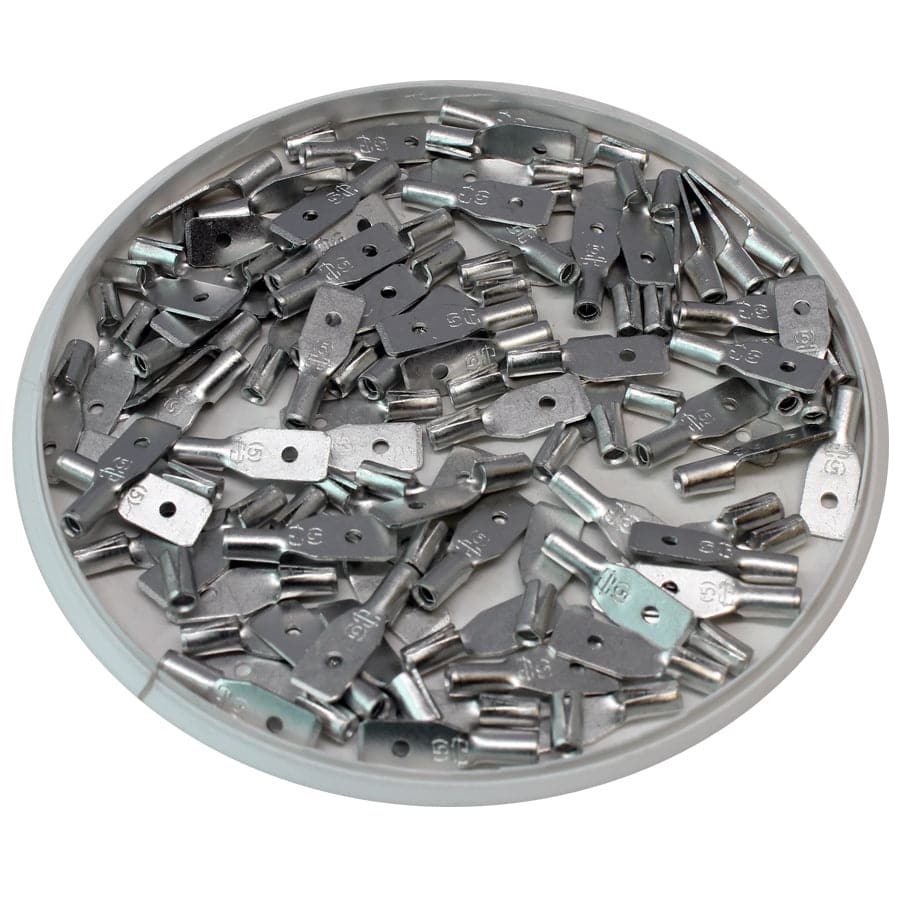

MDN1-187(5) - 22-16AWG .187(5) Uninsulated Male Quick Disconnect 100/pk
Non insulated quick disconnects create a splice when fitted together or can terminate a connection to a terminal block. Quick disconnects be connected or disconnected without damage to the terminal or wire. without the use of tools.
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
| Wire Size: | 22-16 AWG |
| Nema Tab: | 0.5 x 4.75mm (0.02 x 0.18") |
| Max Eletrical Current: | 10AMP |
| Terminal Material: | Brass |
| Surface Material: | Tin-Plated |
| L: | 14.8mm (0.58") |
| F: | 9.8mm (0.39") |
| E: | 5.4mm (0.21") |
| W: | 4.7mm (0.19") |
| D1: | 1.7mm (0.07") |
| D: | 2.8mm (0.11") |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!$0.92
Original: $3.06
-70%MDN1-187(5) - 22-16AWG .187(5) Uninsulated Male Quick Disconnect 100/pk—
$3.06
$0.92Product Information
