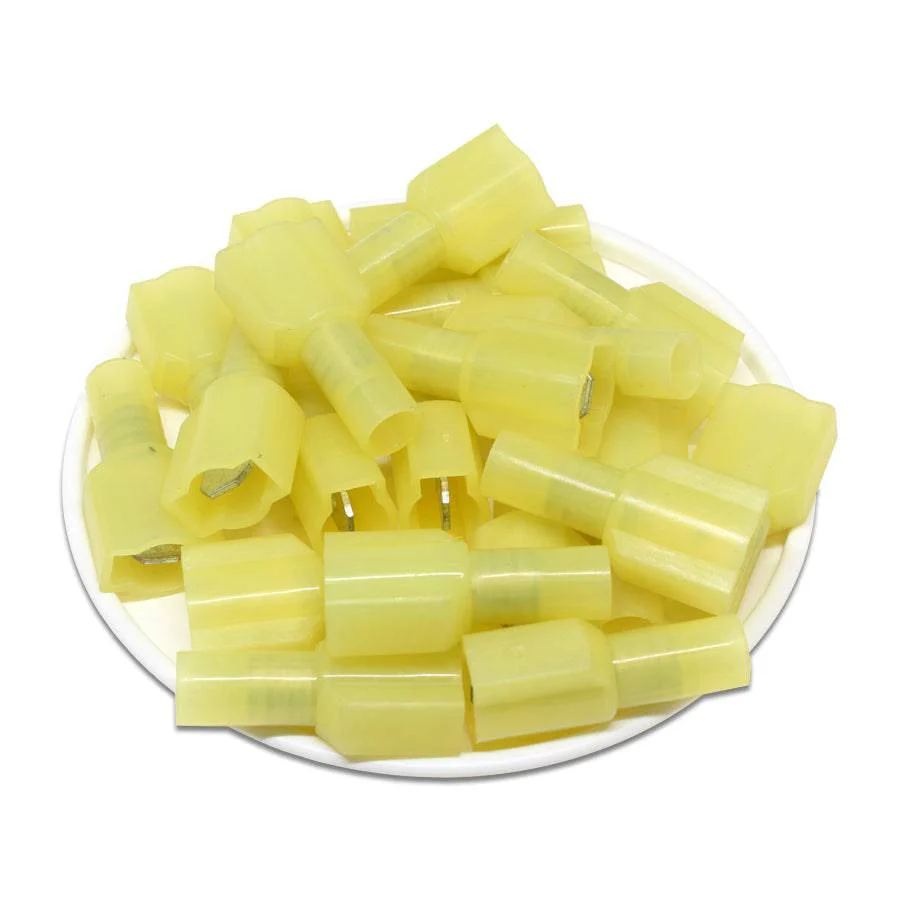

MDFNY5-250 - 12 to 10 AWG Nylon Insulated Quick Disconnects, Male, Fully Insulated, Yellow, 100 Pieces
Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation. Double crimp copper sleeve provides maximum electrical conductivity, strengthens barrel, and protects wire against stress and high vibration.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 12-10 AWG |
| Color: | Yellow |
| W: | 6.4mm (0.25") |
| F: | 7.7mm (0.30") |
| L: | 26mm (1.02") |
| B: | 13mm (0.51") |
| D: | 5.5mm (0.22") |
| C: | 3.4mm (0.13") |
| Nema Tab: | 0.8 x 6.4mm (0.032 x 0.250") |
| Terminal Material: | Brass (with copper sleeve) |
| Insulation Material: | Nylon |
| Insulation Profile: | Dome |
| Electrical Rating: | 105°C - 600 Volts |
| Amp Rating: | 24 AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
