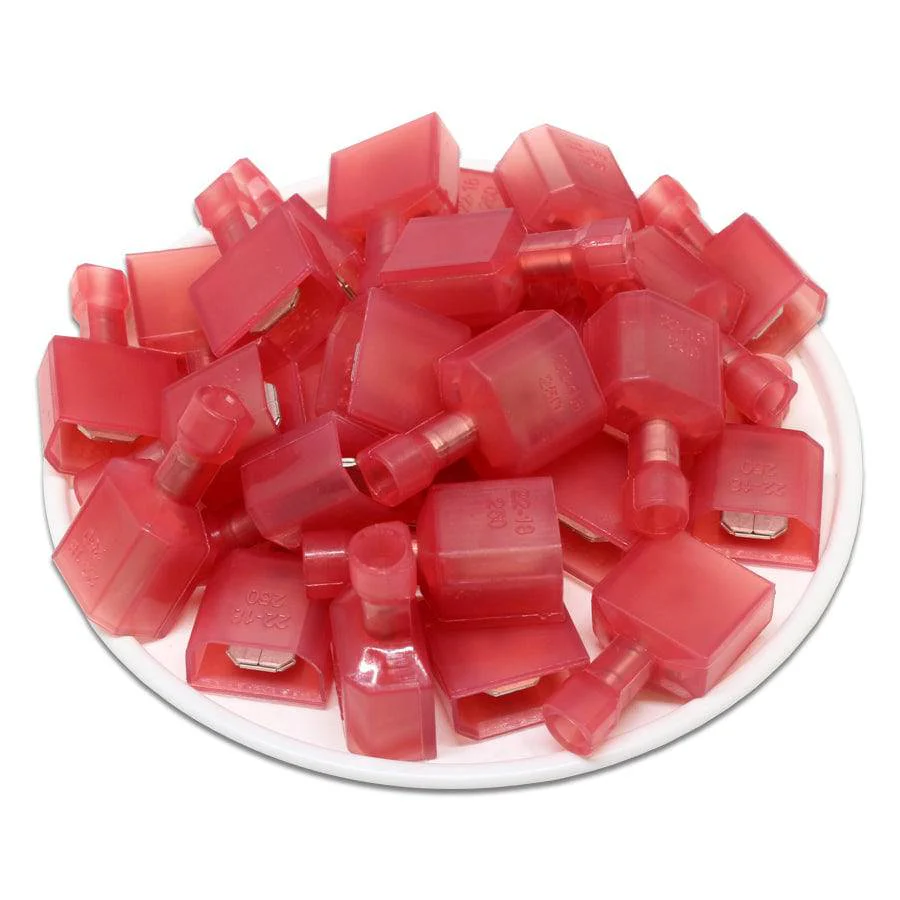

MDFNY1-250(A) - 22 to 16 AWG Nylon Insulated Quick Disconnects, Male, Fully Insulated, Red, 100 Pieces
Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation.
Dimensions & Features:
Product Drawing:
TE: 2-520103-2
None
Dimensions & Features:
| Wire Size: | 22-16 AWG |
| Color: | Red |
| Insulation: | Nylon |
| Insulation Profile: | Flat Bottom |
| Material: | Tin-Plated Brass |
| Max Electrical Rating: | 105°C 300 Volts |
| Max Electrical Current: | 7A |
| T: | 0.4mm (.02") |
| L: | 22mm (.89") |
| F: | 7.9mm (.31") |
| B: | 10mm (.39") |
| W: | 6.4mm (.25") |
| D: | 3.6mm (.14") |
| C: | 1.7mm (.07") |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:TE: 2-520103-2
None
Documents
Click to view the product spec sheet:Videos
Click to view our YouTube channel!$3.59
Original: $11.96
-70%MDFNY1-250(A) - 22 to 16 AWG Nylon Insulated Quick Disconnects, Male, Fully Insulated, Red, 100 Pieces—
$11.96
$3.59Product Information
