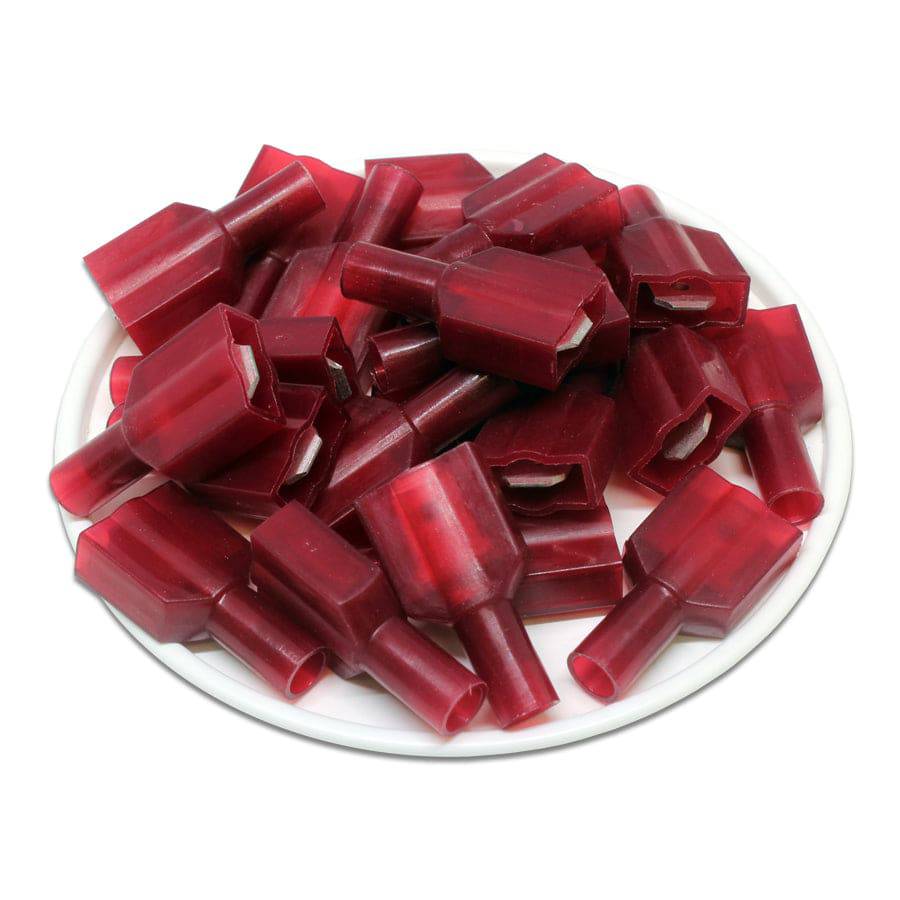

MDFNY1-250 - 22 to 16 AWG Nylon Insulated Quick Disconnects, Male, Fully Insulated, Red, 100 Pieces
Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 22-16 AWG |
| Color: | Red |
| Insulation Material: | Nylon |
| Insulation Profile: | Dome |
| T: | 0.8mm (.03") |
| L: | 24.5mm (.97") |
| F: | 7.7mm (.30") |
| B: | 11mm (.43") |
| W: | 6.4mm (.25") |
| D: | 4mm (.16") |
| C: | 1.7mm (.07") |
| Material: | Tin Plated Brass |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
| Max Electrical Rating: | 105°C 300 Volts |
| Max Electrical Current: | 10A |
Product Drawing:
