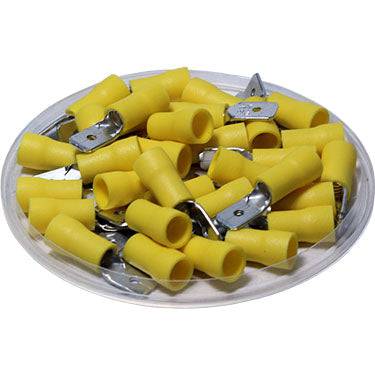

MDD5-250 - 12 to 10 AWG Vinyl PVC Insulated Quick Disconnects, Male, Fully Insulated, Double Crimp, Yellow, 100 Pieces
Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation.
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
| Wire Size: | 12-10 AWG |
| Color: | Yellow |
| Terminal Material: | Tin Plated Brass |
| Terminal Insulation: | Vinyl |
| Voltage Rating: | 600 Volts |
| AMP Rating: | 20-24AMP |
| Temperature Rating: | 105oC |
| NEMA Tab: | 0.032" X 0.250" (0.8mm X 6.35mm) |
| L: | 24.0mm (0.94") |
| F: | 7.7mm (0.30") |
| W: | 6.3mm (0.25") |
| T: | 0.4mm (0.16") |
| B: | 13.0mm (0.51") |
| D: | 6.2mm (0.24") |
| C: | 3.4mm (0.13") |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
Documents
Click to view product spec sheet:Videos
