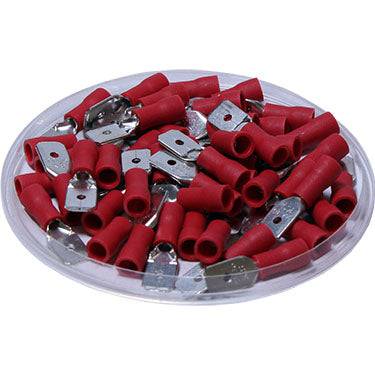

Product image 1
HomeStore

MDD1-187(8) - Vinyl Insulated Double Crimp Quick Disconnects - 22-16 AWG - Male

MDD1-187(8) - Vinyl Insulated Double Crimp Quick Disconnects - 22-16 AWG - Male

Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation. Double crimp copper sleeve provides maximum electrical conductivity, strengthens barrel, and protects wire against stress and high vibration.

Dimensions & Features:

Wire Size: 22-16 AWG
Color: Red
W: 4.8mm (0.19")
F: 6.7mm (0.26")
L: 19.8mm (0.78")
B: 10.5mm (0.41")
D: 4.0mm (0.16")
C: 1.7mm (0.07")
Nema Tab: 0.8 x 4.8mm (0.032 x 0.187")
Terminal Material: Brass (with copper sleeve)
Insulation Material: Vinyl
Electrical Rating: 105°C - 600 Volts
Amp Rating: 15AMP
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:

Videos

Check out our YouTube channel!

$9.03
MDD1-187(8) - Vinyl Insulated Double Crimp Quick Disconnects - 22-16 AWG - Male—
$9.03
