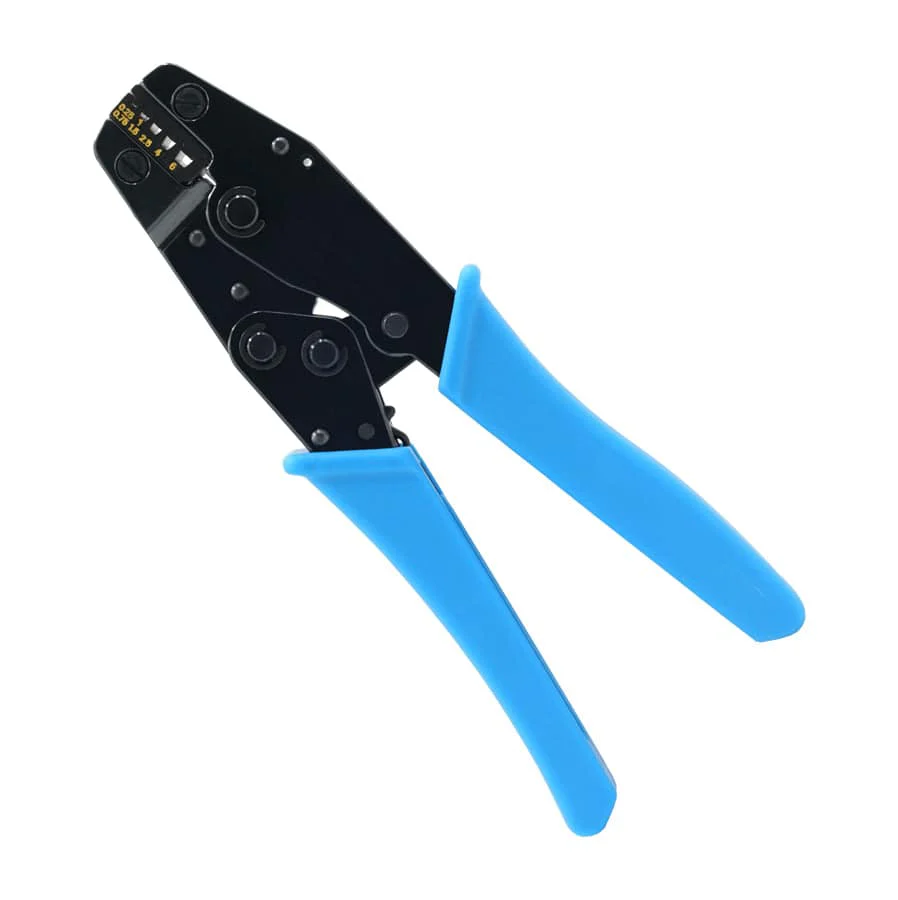

KST LY8-060 - 24 to 10 AWG Wire Ferrules Crimping Tool, UL Approved, Side Load, Trapezoidal Profile, 1 Piece

KST LY8-060 - 24 to 10 AWG Wire Ferrules Crimping Tool, UL Approved, Side Load, Trapezoidal Profile, 1 Piece

HIGH PERFORMANCE WIRE FERRULES CRIMPING TOOL

This KST LY8-060 is UL approved and designed for 24 to 10 AWG wire ferrules. It has the traditional slotted die set design with a ratchet mechanism.

FEATURES & SPECIFICATIONS:

  • Crimping Range: 24 to 10 AWG (0.25-6.00mm²)
    • Standard Ferrules: 24 to 10 AWG (0.25-6.00mm²)
    • Twin Wire Ferrules: 22 to 12 AWG (0.50-4.00mm²)
  • Crimping Profile: Trapezoidal
  • Maximum Ferrule Crimping Length: 3/8" (10mm)
  • Tool Length: 8" Long
  • Crimping Mechanism: Ratchet Mechanism with Traditional Slotted Die Set
  • UL Approved
  • Side Loading
  • Hardened steel frame
  • Ergonomically designed handles with comfort grips.
  • Estimated life span of <50,000 crimp cycles
  • Calibrated at factory for immediate out-of-the-box use
  • Tension adjustment knob for longterm adjustment.
  • 1-Year Warranty*
  • RoHS Compliant

Cross References

Cross Reference Parts:
None

Documents

None Available


$66.02
KST LY8-060 - 24 to 10 AWG Wire Ferrules Crimping Tool, UL Approved, Side Load, Trapezoidal Profile, 1 Piece—
$66.02
