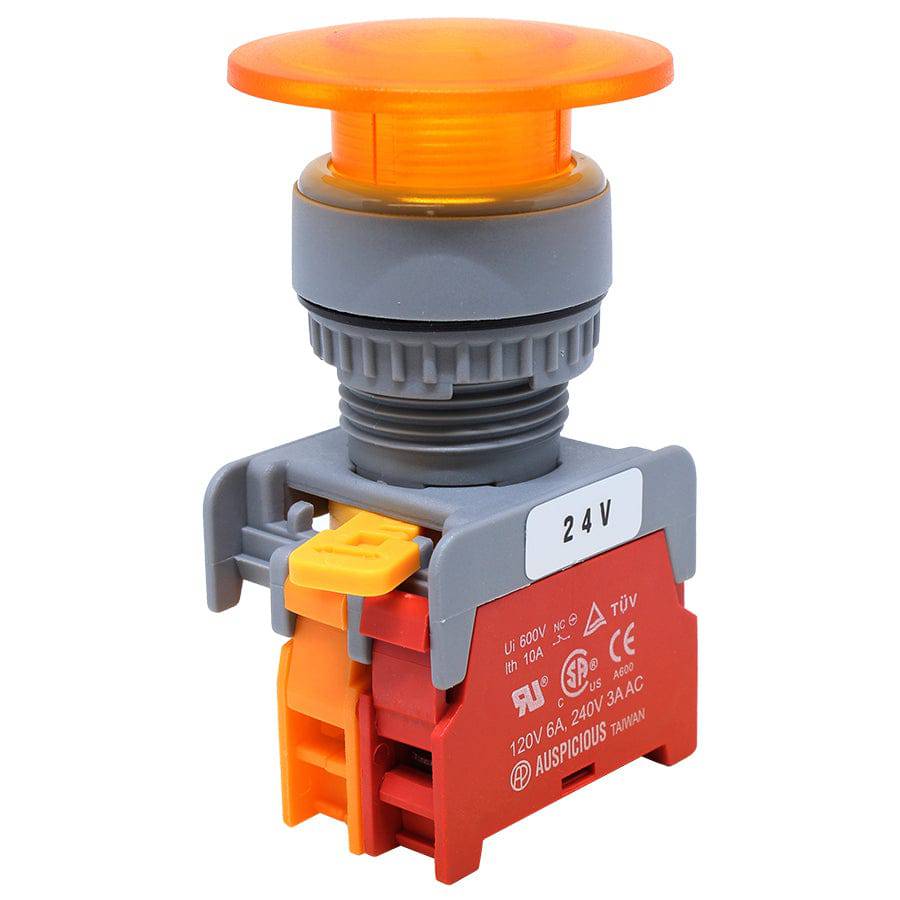

LXE22-7/C-YL - 22mm Illuminated Mushroom Head Push Button - 24V - Yellow
A push button switch consists of a simple electric switch mechanism which controls some aspect of a machine or process.
Dimensions & Features:
None
Dimensions & Features:
| Type: | Illuminated Mushroom Head Push Button |
| Mounting Hole Size: | 22mm |
| Color: | Yellow |
| Type of Contact: | Normally Closed |
| Number of Contact: | 1 |
| Voltage Rating: | 24V |
| Enclosure Material: | Reinforced Thermoplastic |
| Contact Material: | Silver |
| Protection Degree: | IP 65 |
| Storage Temperature: | -40oC to 80oC |
| Operating Temperature: | -25oC to 70oC |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Cross References
Cross Reference Parts:None
Documents
Click to view the product spec sheet:Videos
Click to view our YouTube channel!$2.34
Original: $7.80
-70%LXE22-7/C-YL - 22mm Illuminated Mushroom Head Push Button - 24V - Yellow—
$7.80
$2.34Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
A push button switch consists of a simple electric switch mechanism which controls some aspect of a machine or process.
Dimensions & Features:
None
Dimensions & Features:
| Type: | Illuminated Mushroom Head Push Button |
| Mounting Hole Size: | 22mm |
| Color: | Yellow |
| Type of Contact: | Normally Closed |
| Number of Contact: | 1 |
| Voltage Rating: | 24V |
| Enclosure Material: | Reinforced Thermoplastic |
| Contact Material: | Silver |
| Protection Degree: | IP 65 |
| Storage Temperature: | -40oC to 80oC |
| Operating Temperature: | -25oC to 70oC |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Cross References
Cross Reference Parts:None
