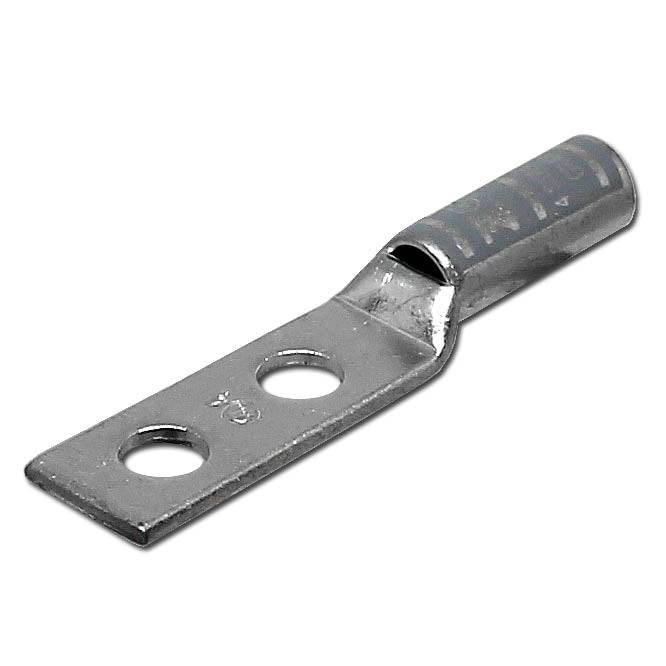

LT410A - 4 AWG Compression Lug - #10 Stud Size, 1 Piece

LT410A - 4 AWG Compression Lug - #10 Stud Size, 1 Piece

Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 4 AWG
Stud Size: #10 Stud
Color: Gray
L: 61mm (2.40")
L1: 34.3mm (1.35")
L2: 19.1mm (0.53")
D: 13.7mm (0.54")
D1: 9.1mm (0.36")
D2: 7.1mm (0.28")
B: 22.9mm (0.90")
E: 5.6mm (0.22")
F: 1.9mm (0.08")
Terminal Material: Tin-Plated Copper
Temperature Rating: 90°C
Voltage Rating: 35KV
Max Amp Rating: 85A
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:

Videos

Check out our YouTube channel!
