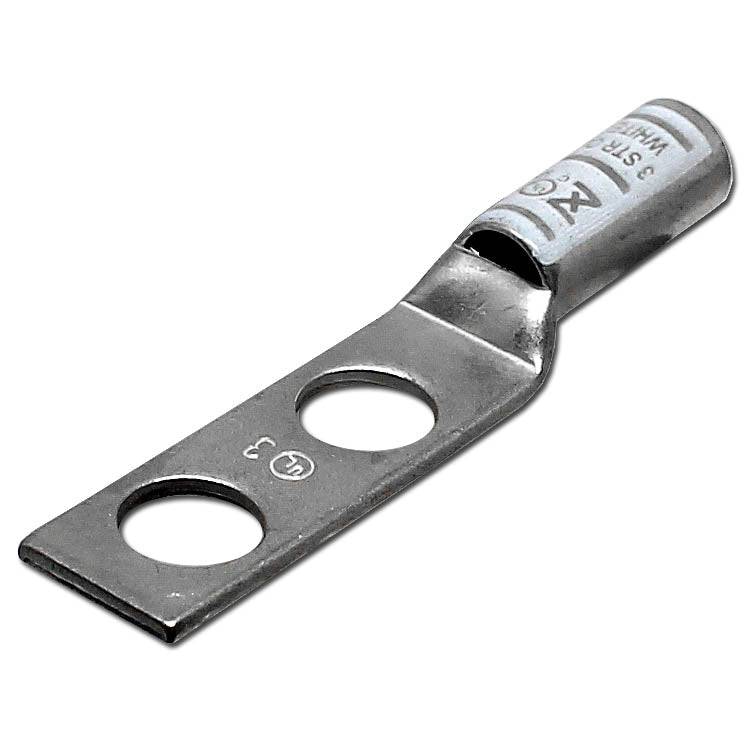

Product image 1
HomeStore

LT338A - 3 AWG Compression Lug - 3/8" Stud Size, 1 Piece

LT338A - 3 AWG Compression Lug - 3/8" Stud Size, 1 Piece

Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 3 AWG
Stud Size: 3/8" Stud
Color: White
L: 73.2mm (2.88")
L1: 46.5mm (1.83")
L2: 25.4mm (1.00")
D: 14.5mm (0.57")
D1: 9.9mm (0.39")
D2: 7.9mm (0.31")
B: 22.9mm (0.90")
E: 10.4mm (0.41")
F: 2mm (0.08")
Terminal Material: Tin-Plated Copper
Temperature Rating: 90°C
Voltage Rating: 35KV
Max Amp Rating: 115A
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:

Videos

Check out our YouTube channel!
