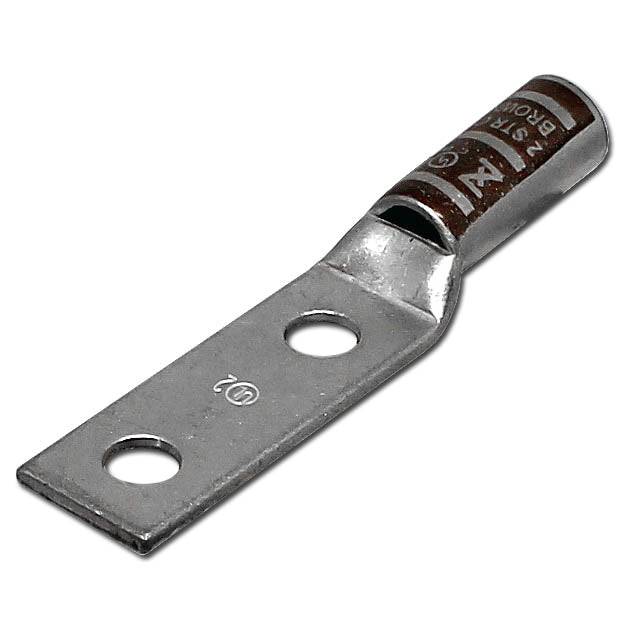

LT238B - 2 AWG Compression Lug - 3/8" Stud Size, 1 Piece

LT238B - 2 AWG Compression Lug - 3/8" Stud Size, 1 Piece

Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 2 AWG
Stud Size: 3/8" Stud
Color: Brown
L: 94.6mm (3.73")
L1: 65.5mm (2.58")
L2: 44.5mm (1.75")
D: 15.9mm (0.63")
D1: 10.8mm (0.43")
D2: 8.5mm (0.34")
B: 24.5mm (0.97")
E: 10.4mm (0.41")
F: 2.2mm (0.09")
Terminal Material: Tin-Plated Copper
Temperature Rating: 90°C
Voltage Rating: 35KV
Max Amp Rating: 170A
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:

Videos

Check out our YouTube channel!

$2.63
