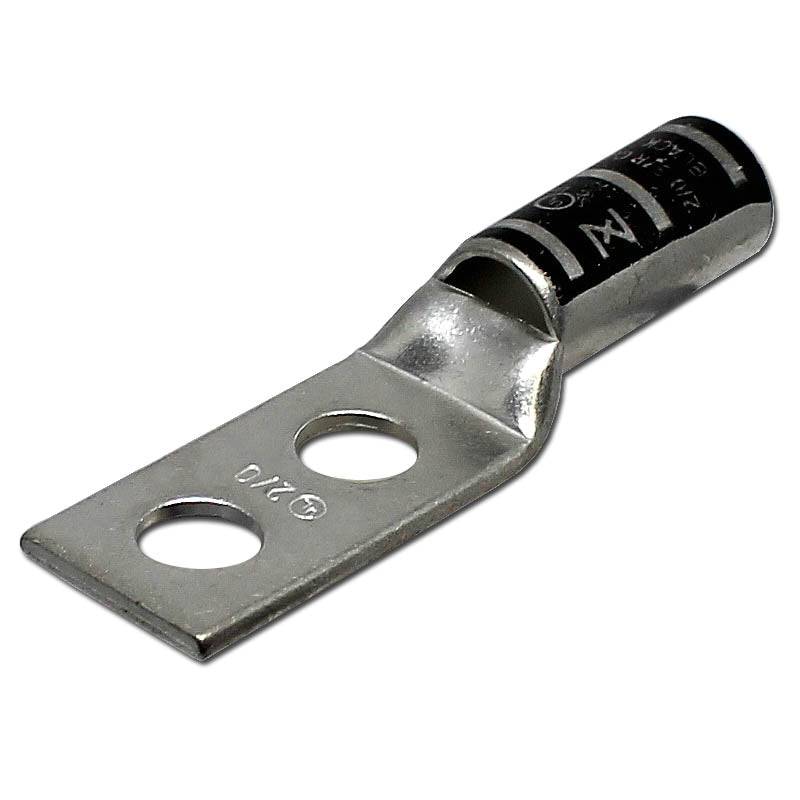

LT2014A - 2/0 AWG Compression Lug - 1/4" Stud Size, 1 Piece

LT2014A - 2/0 AWG Compression Lug - 1/4" Stud Size, 1 Piece

Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 2/0 AWG
Stud Size: 1/4"
Color: Black
L: 74.3mm (2.93")
L1: 37.5mm (1.48")
L2: 19.1mm (0.75")
D: 20.8mm (0.82")
D1: 14.2mm (0.56")
D2: 11.7mm (0.46")
B: 30.5mm 1.20")
E: 7.1mm (0.28")
F: 2.5mm (0.10")
Terminal Material: Tin-Plated Copper
Temperature Rating: 90°C
Voltage Rating: 35 KV
Max Amp Rating: 265A
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:

None:

Documents

Click to view product spec sheet:


Videos

Check out our YouTube channel!

$0.95

Original: $3.18

-70%
LT2014A - 2/0 AWG Compression Lug - 1/4" Stud Size, 1 Piece—

$3.18

$0.95
