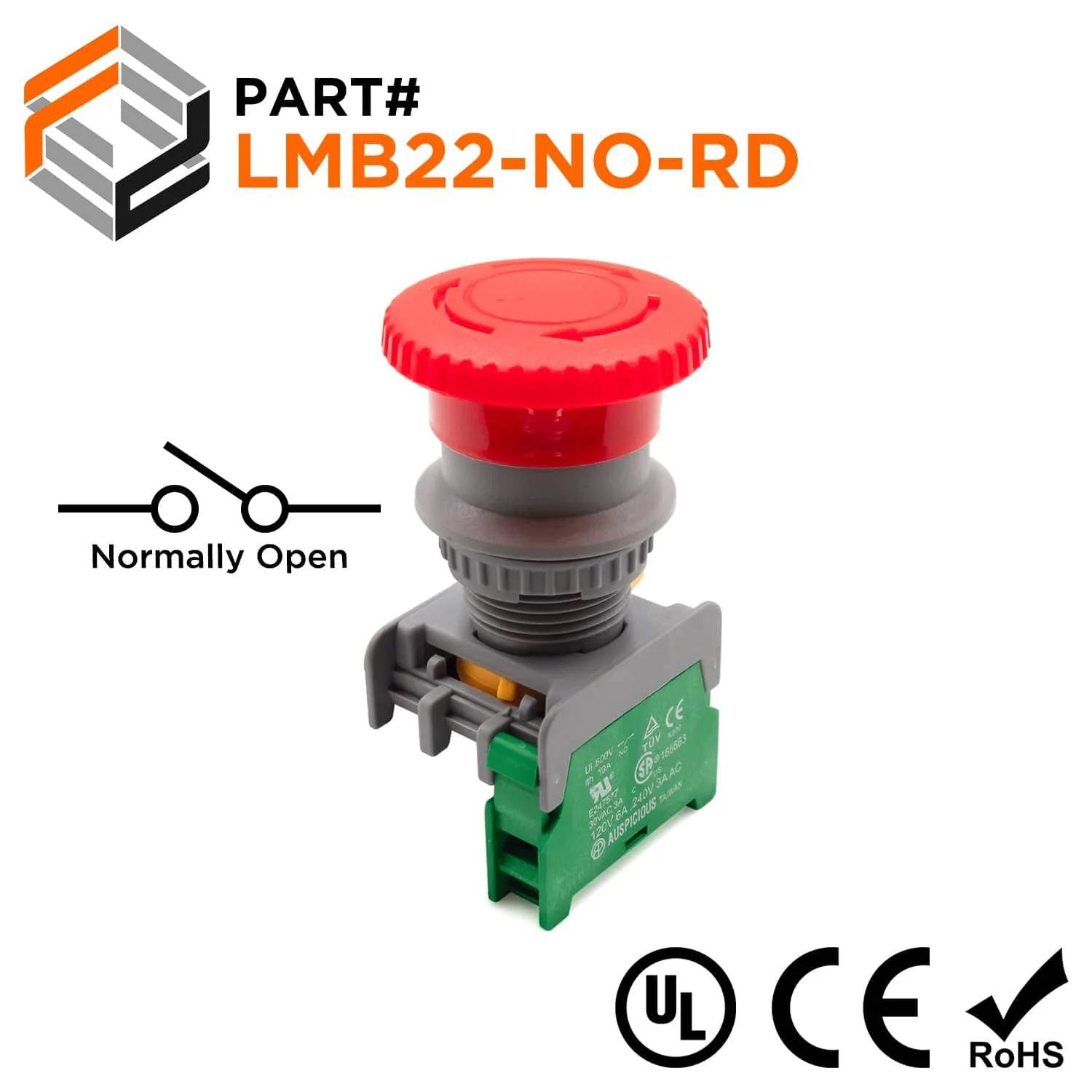

LMB22-NO-RD - 22mm Rotary Switch Push Button, NO Contact, 110-240v, 1 Piece
Rotary head switches resemble mushroom head buttons but are turned rather than pushed. To operate, you must rotate it in the direction displayed on top. Rotating it will open/close your electrica circuit connection. Then release it back to its default position in order to close/open it.
Dimensions & Features:
None
Dimensions & Features:
| Type: | Rotary Push Button Switch |
| Mounting Hole Size: | 22mm |
| Color: | Red |
| Type of Contact: | N/O |
| Number of Contacts: | 1 |
| Voltage Rating: | 110v-240v |
| Enclosure Material: | Reinforced Thermoplastic |
| Contact Material: | Silver |
| Protection Degree: | IP 65 |
| Storage Temperature: | -40oC to 80oC |
| Operating Temperature: | -25oC to 70oC |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Cross References
Cross Reference Parts:None
Documents
Click to view the product spec sheet:Videos
Click to view our YouTube channel!$6.40
