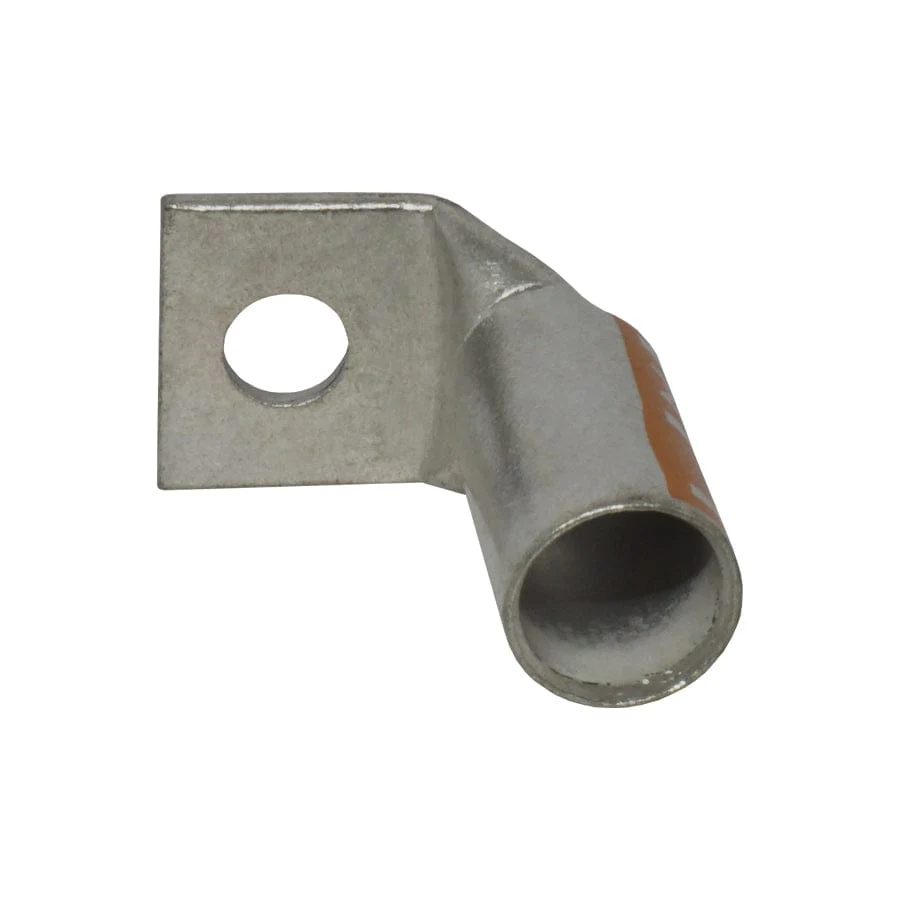

LBF30516 - 90 Degree Long Barrel Compression Lug - 3/0AWG - 5/16" Stud, 1 Piece
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
| Wire Size: | 3/0 AWG |
| Stud Size: | 5/16" Stud |
| Color: | Orange |
| A: | 15.7mm (0.62") |
| B: | 30.5mm (1.20") |
| C: | 13.0mm (0.51") |
| D: | 23.1mm (0.91") |
| E: | 8.9mm (0.35") |
| G: | 8.9mm (0.35") |
| Material: | Tin Plated Copper |
| CE Certified: | Yes |
| UL Approved: | Yes |
| RoHS Compliant: | Yes |
| Temperature Rating: | 90°C |
| Max Electrical Rating: | 35 KV |
| Max Electrical Current: | 310A |
Product Drawing:
Cross References
Cross Reference Parts:
None
Documents
Click to view product spec sheet:
Videos
Check out our YouTube channel!
