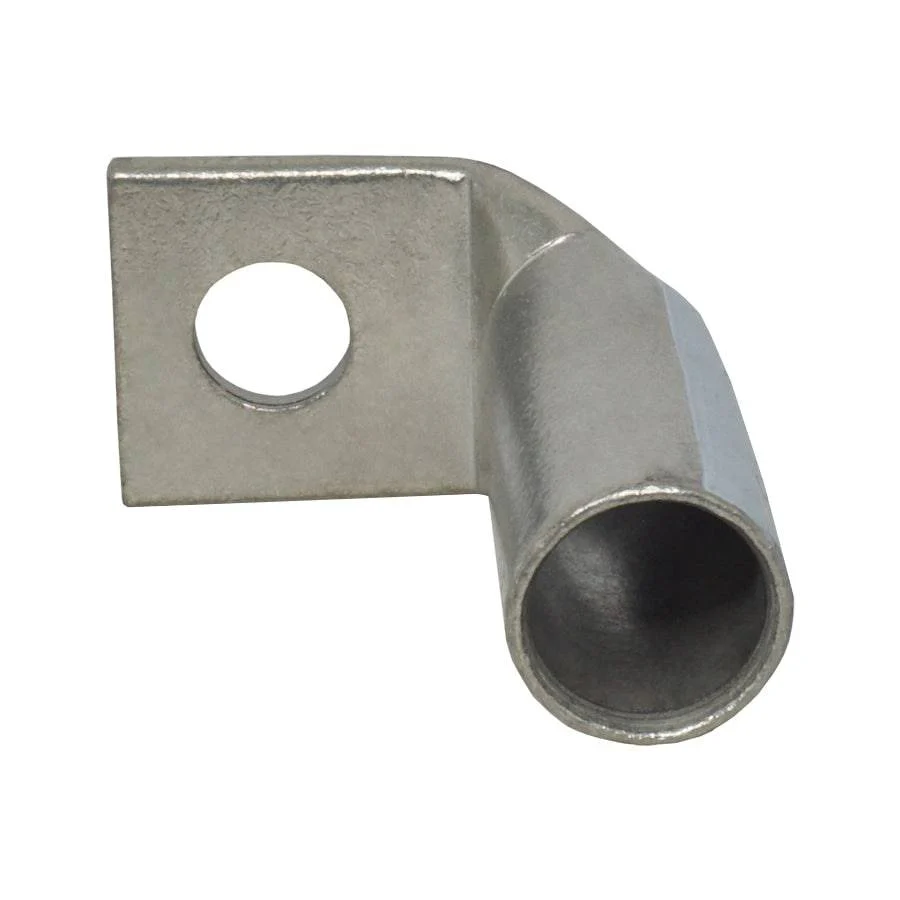

LBF30012 - 90 Degree Long Barrel Compression Lug - 300MCM - 1/2" Stud, 1 Piece
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 300MCM |
| Stud Size: | 1/2" Stud |
| Color: | White |
| A: | 21.1mm (0.83") |
| B: | 48.3mm (1.90") |
| C: | 17.3mm (0.68") |
| D: | 30.2mm (1.19") |
| E: | 13.0mm (0.51") |
| G: | 13.5mm (0.53") |
| Material: | Tin Plated Copper |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
| UL Approved: | Yes |
| Temperature Rating: | 90°C |
| Max Electrical Rating: | 35 KV |
| Max Electrical Current: | 285A |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!$9.51
