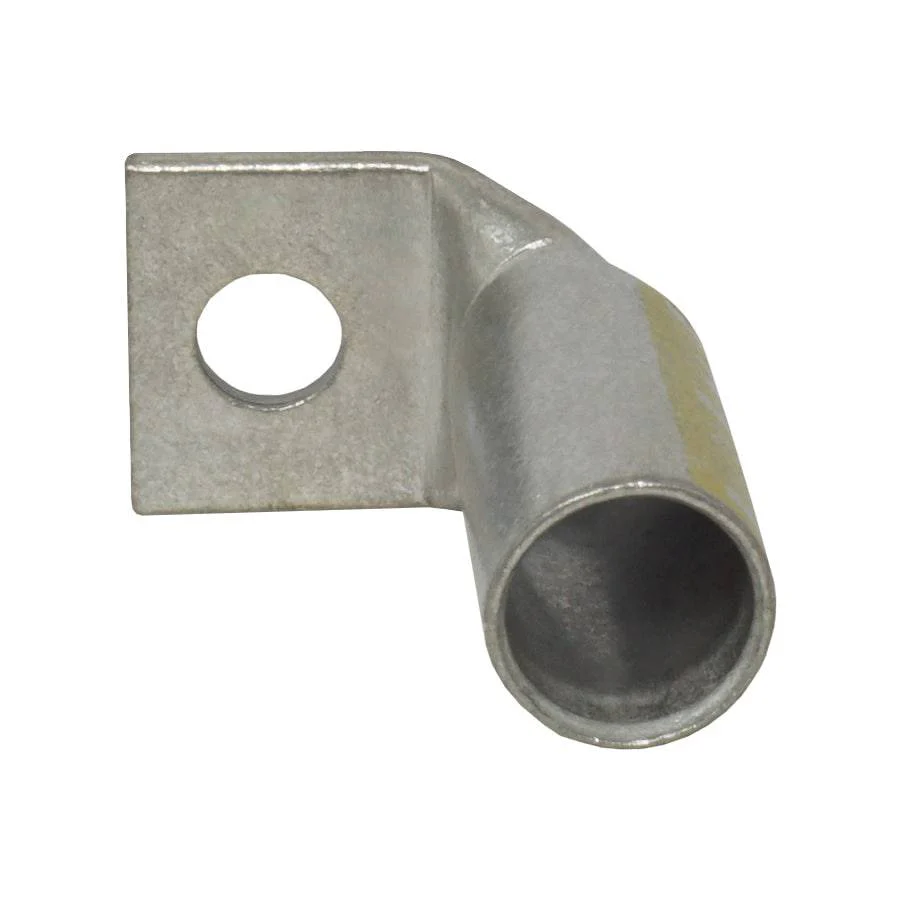

LBF25038 - 90 Degree Long Barrel Compression Lug - 250MCM - 3/8" Stud, 1 Piece
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 250MCM |
| Stud Size: | 3/8" Stud |
| Color: | Yellow |
| A: | 19.1mm (0.75") |
| B: | 40.1mm (1.58") |
| C: | 16.0mm (0.63") |
| D: | 27.9mm (1.10") |
| E: | 10.4mm (0.41") |
| G: | 10.2mm (0.40") |
| Material: | Tin Plated Copper |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
| UL Approved: | Yes |
| Temperature Rating: | 90°C |
| Max Electrical Rating: | 35 KV |
| Max Electrical Current: | 255A |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
