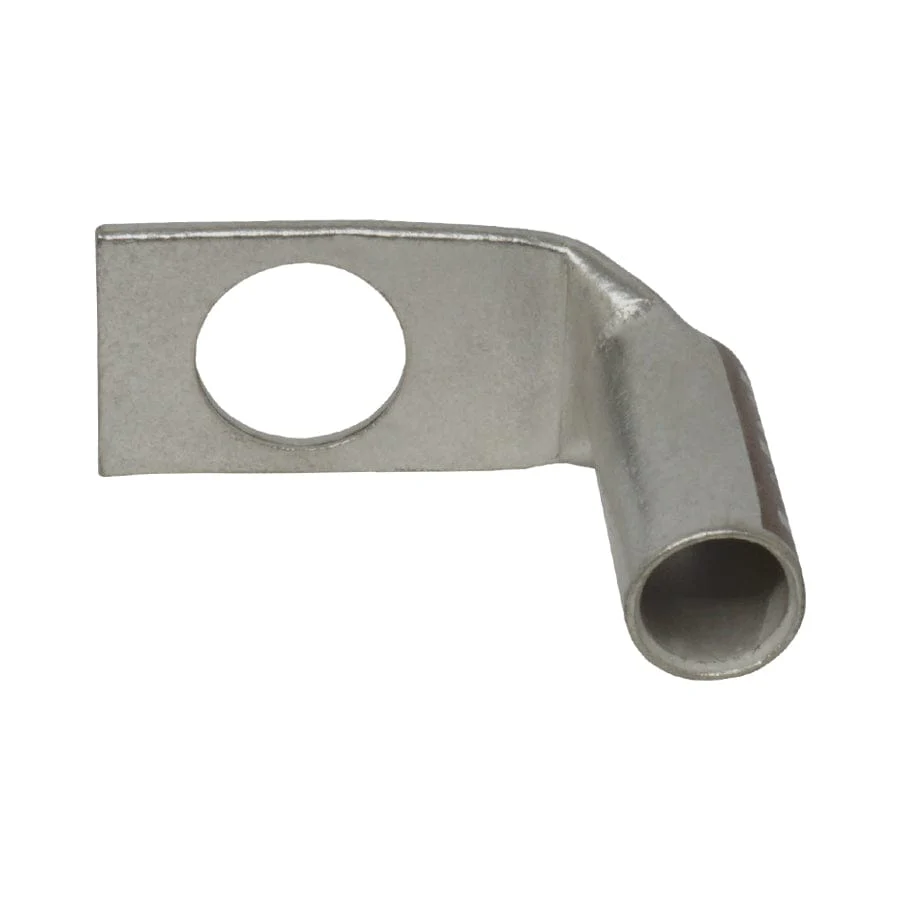

LBF212 - 90 Degree Long Barrel Compression Lug - 2AWG - 1/2" Stud, 1 Piece
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 2 AWG |
| Stud Size: | 1/2" Stud |
| Color: | Brown |
| A: | 10.9mm (0.43") |
| B: | 24.6mm (0.97") |
| C: | 8.6mm (0.34") |
| D: | 17.8mm (0.70") |
| E: | 13.2mm (0.52") |
| G: | 12.7mm (0.50") |
| Material: | Tin Plated Copper |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
| UL Approved: | Yes |
| Temperature Rating: | 90°C |
| Max Electrical Rating: | 35 KV |
| Max Electrical Current: | 115A |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!$0.52
Original: $1.73
-70%LBF212 - 90 Degree Long Barrel Compression Lug - 2AWG - 1/2" Stud, 1 Piece—
$1.73
$0.52Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 2 AWG |
| Stud Size: | 1/2" Stud |
| Color: | Brown |
| A: | 10.9mm (0.43") |
| B: | 24.6mm (0.97") |
| C: | 8.6mm (0.34") |
| D: | 17.8mm (0.70") |
| E: | 13.2mm (0.52") |
| G: | 12.7mm (0.50") |
| Material: | Tin Plated Copper |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
| UL Approved: | Yes |
| Temperature Rating: | 90°C |
| Max Electrical Rating: | 35 KV |
| Max Electrical Current: | 115A |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!
