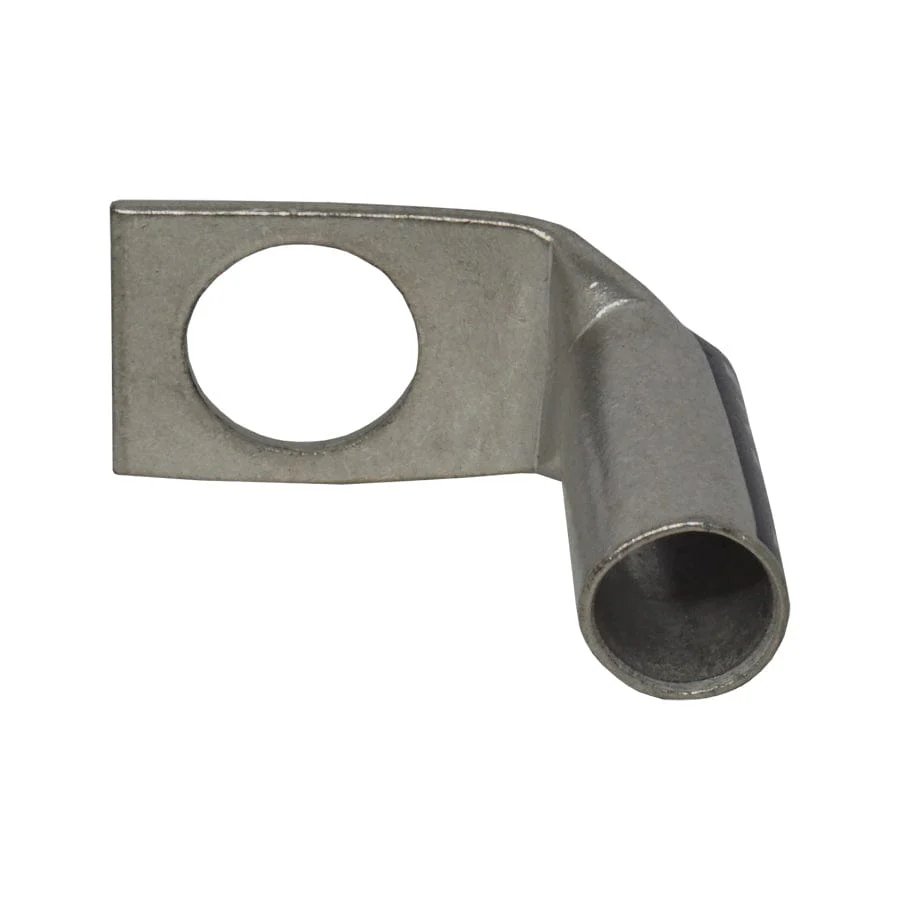

LBF2058 - 90 Degree Long Barrel Compression Lug - 2/0AWG - 5/8" Stud, 1 Piece
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 2/0 AWG |
| Stud Size: | 5/8" Stud |
| Color: | Black |
| A: | 14.2mm (0.56") |
| B: | 30.5mm (1.20") |
| C: | 11.7mm (0.46") |
| D: | 22.9mm (0.90") |
| E: | 16.8mm (0.66") |
| G: | 14.0mm (0.55") |
| Material: | Tin Plated Copper |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
| UL Approved: | Yes |
| Temperature Rating: | 90°C |
| Max Electrical Rating: | 35 KV |
| Max Electrical Current: | 175A |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!$0.94
Original: $3.13
-70%LBF2058 - 90 Degree Long Barrel Compression Lug - 2/0AWG - 5/8" Stud, 1 Piece—
$3.13
$0.94Product Information
