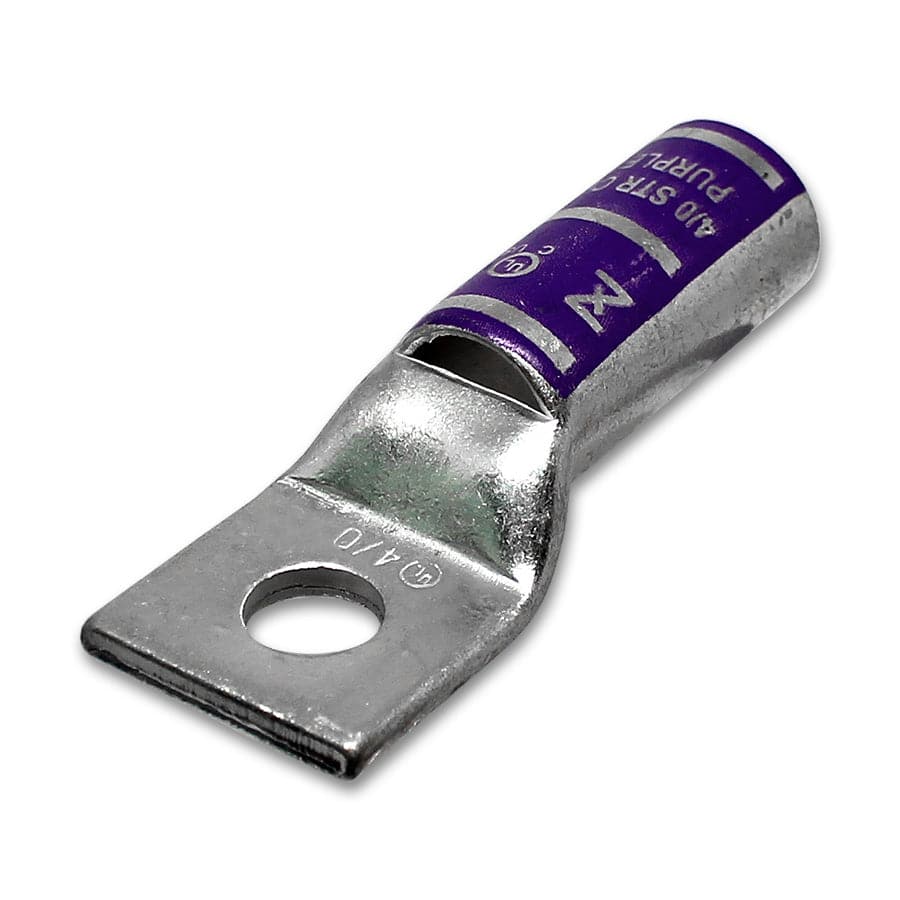

LB4012 - 4/0 AWG Long Compression Lug - 1/2" Stud Size

LB4012 - 4/0 AWG Long Compression Lug - 1/2" Stud Size

Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 4/0 AWG
Stud Size: 1/2"
Color: Purple
L: 74.8mm (2.94")
L1: 28.7mm (1.13")
D: 25.4mm (1.00")
D1: 17.3mm (0.68")
D2: 14.2mm (0.56")
B: 37.2mm (1.46")
E: 13.1mm (0.51")
F: 3.0mm (0.12")
Terminal Material: Tin-Plated Copper
Temperature Rating: 90°C
Voltage Rating: 35 KV
Max Amp Rating: 230A
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
Burndy Hubbell: YAZ28TC12

None:

Documents

Click to view product spec sheet:

Videos

Check out our YouTube channel!

$4.32
LB4012 - 4/0 AWG Long Compression Lug - 1/2" Stud Size—
$4.32
