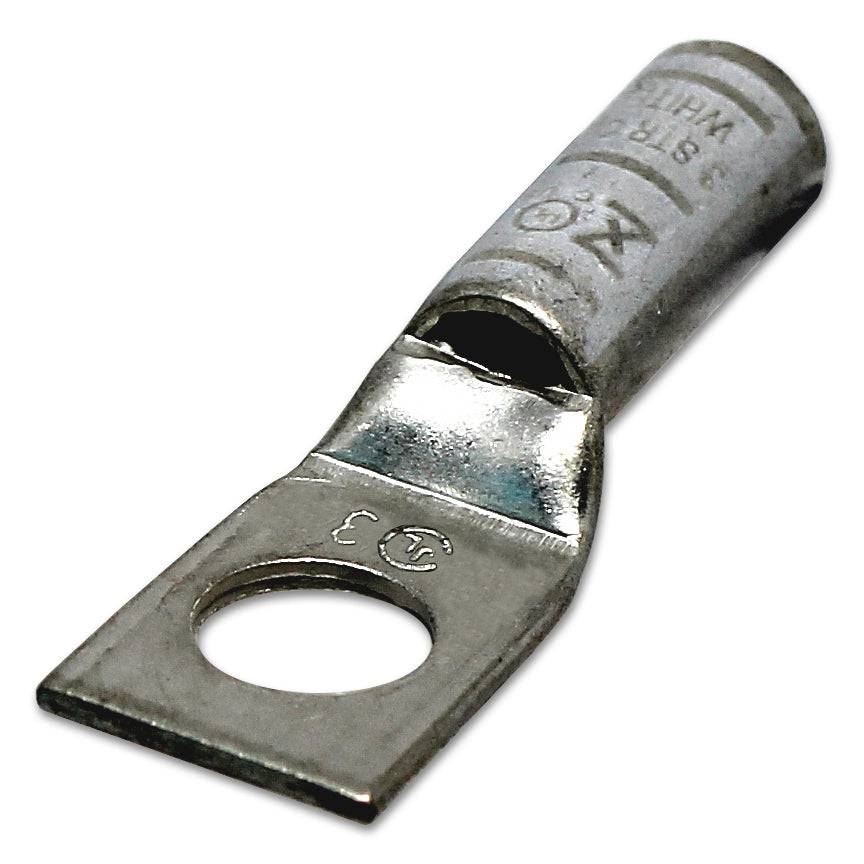

LB338 - 3AWG Long Compression Lug - 3/8" Stud Size
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 3 AWG |
| Stud Size: | 3/8" |
| Color: | White |
| L: | 47.7mm (1.88") |
| L1: | 21.1mm (.83") |
| D: | 15.2mm (.60") |
| D1: | 9.9mm (0.39") |
| D2: | 7.8mm (0.31") |
| B: | 22.8mm (0.90") |
| E: | 10.4mm (.41") |
| F: | 1.8mm (.073") |
| Terminal Material: | Tin-Plated Copper |
| Temperature Rating: | 90°C |
| Voltage Rating: | 35 KV |
| Max Amp Rating: | 170A |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
