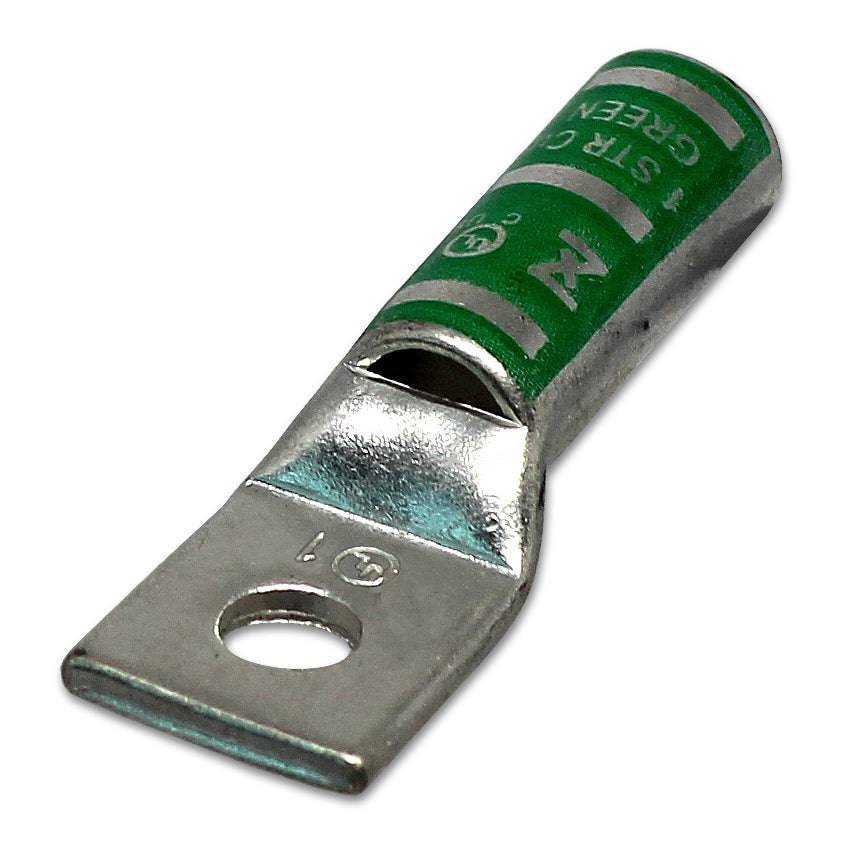

LB112 - 1 AWG Long Compression Lug - 1/2" Stud Size, 1 Piece
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
| Wire Size: | 1 AWG |
| Stud Size: | 1/2" |
| Color: | Green |
| L: | 61.8mm (2.43") |
| L1: | 28.7mm (1.13") |
| D: | 17.7mm (0.70") |
| D1: | 11.6mm (0.46") |
| D2: | 9.1mm (0.36") |
| B: | 28.6mm 1.13") |
| E: | 13.1mm (0.51") |
| F: | 2.3mm (0.09") |
| Terminal Material: | Tin-Plated Copper |
| Temperature Rating: | 90°C |
| Voltage Rating: | 35 KV |
| Max Amp Rating: | 230A |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
Documents
Click to view product spec sheet:
