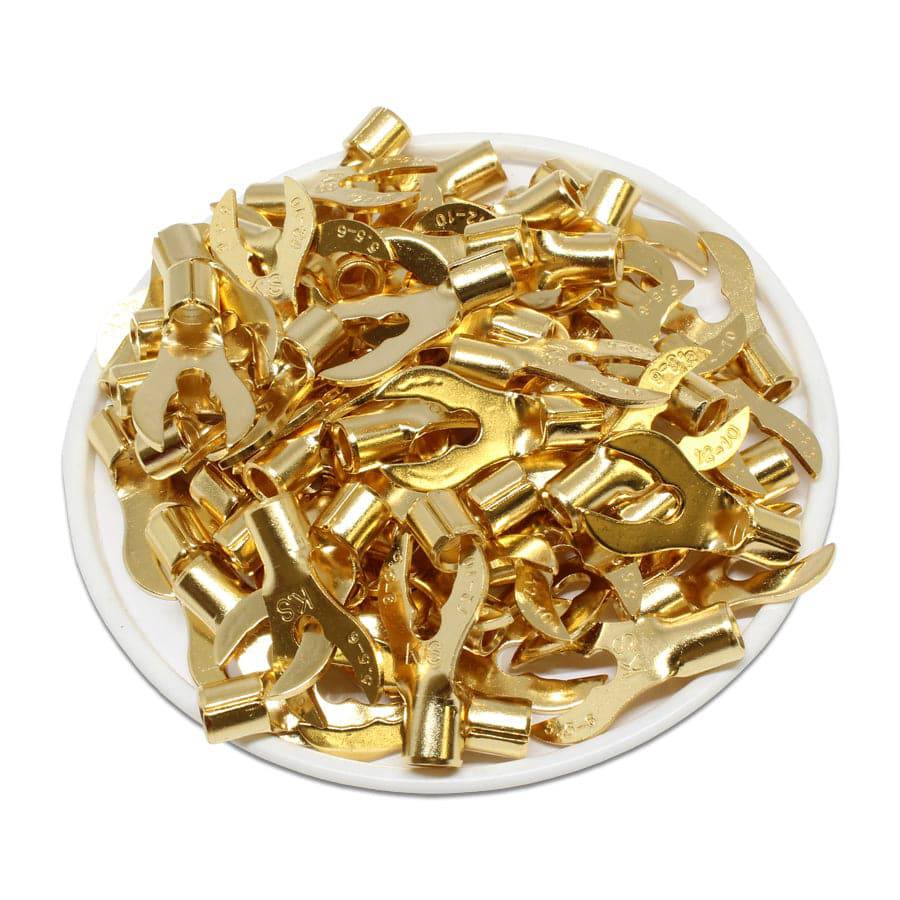

LAN5-6G - 12 to 10 AWG Gold Plated Fork Terminals, 1/4" Stud, 100 Pieces
Non-insulated spade terminals lock in place for tight and secure connection in cramped spaces. They allow the user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations ensure good wire contact and maximum tensile strength. The gold plating provides higher conductivity as well as corrosion resistance..
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 12-10 AWG |
| T: | 1.0mm (0.04") |
| L: | 21.5mm (0.85") |
| F: | 6.0mm (0.236") |
| W: | 12.0mm (0.47") |
| D: | 5.6mm (0.22") |
| D1: | 3.4mm (0.13") |
| D2: | 6.0mm (0.236") |
| Material: | Gold Plated Copper |
| Seam: | Butted |
| Electrical Current: | 50 AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!$19.53
Original: $65.09
-70%LAN5-6G - 12 to 10 AWG Gold Plated Fork Terminals, 1/4" Stud, 100 Pieces—
$65.09
$19.53Product Information
