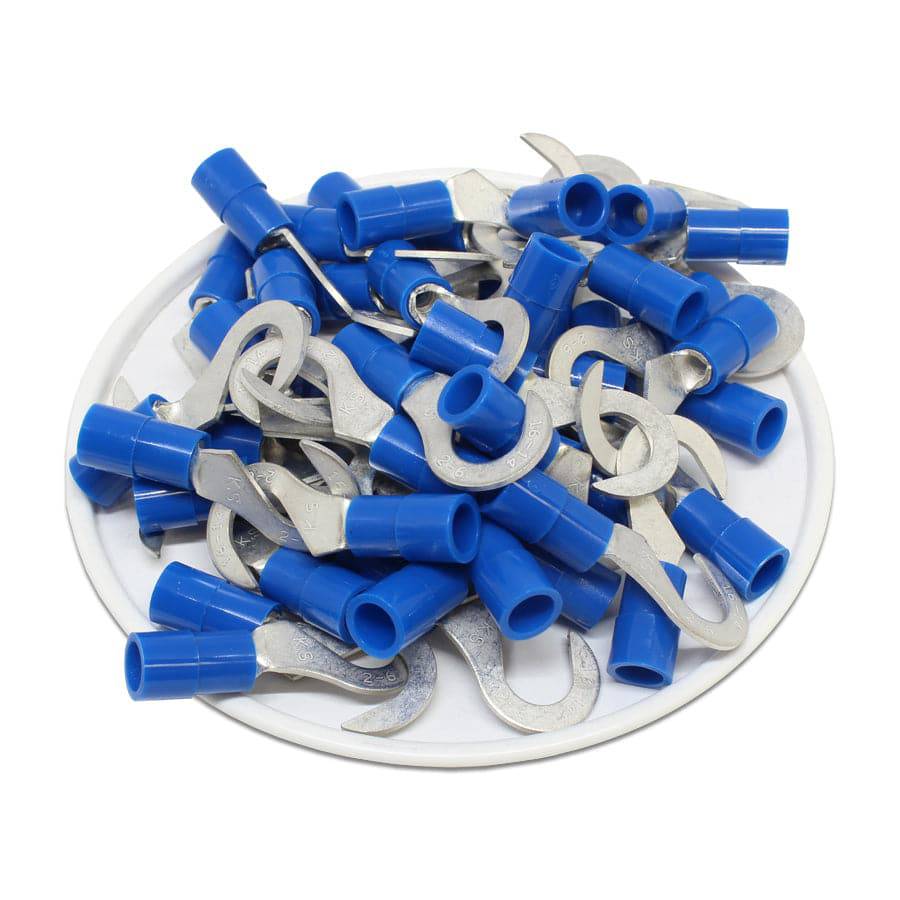

HNYB2-6 - Nylon Insulated Hook Terminals - 16-14 AWG - Blue - 100/pack
Nylon insulated hook terminals combine the security of a ring terminal with the practicality of fork terminals. They allow the end user to quickly and easily terminate a connection without the need to remove the fastening screw.
Product Drawing:
None:
| Wire Range: | 16-14 AWG |
| T: | 0.03" (0.8mm) |
| L: | 1.09" (27.8mm) |
| F: | 0.43" (11.0mm) |
| E: | 0.43" (11.0mm) |
| W: | 0.47" (12.0mm) |
| D: | 0.18" (4.5mm) |
| D1: | 0.09" (2.3mm) |
| D2: | 0.25" (6.4mm) |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | Nylon |
| Stud Size: | 1/4 Stud |
| Temperature Rating: | 150oC - 600 Volts |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
Documents
Click to view product spec sheet:Videos
Click below to check out our YouTube channel!$5.40
Original: $18.00
-70%HNYB2-6 - Nylon Insulated Hook Terminals - 16-14 AWG - Blue - 100/pack—
$18.00
$5.40Product Information
