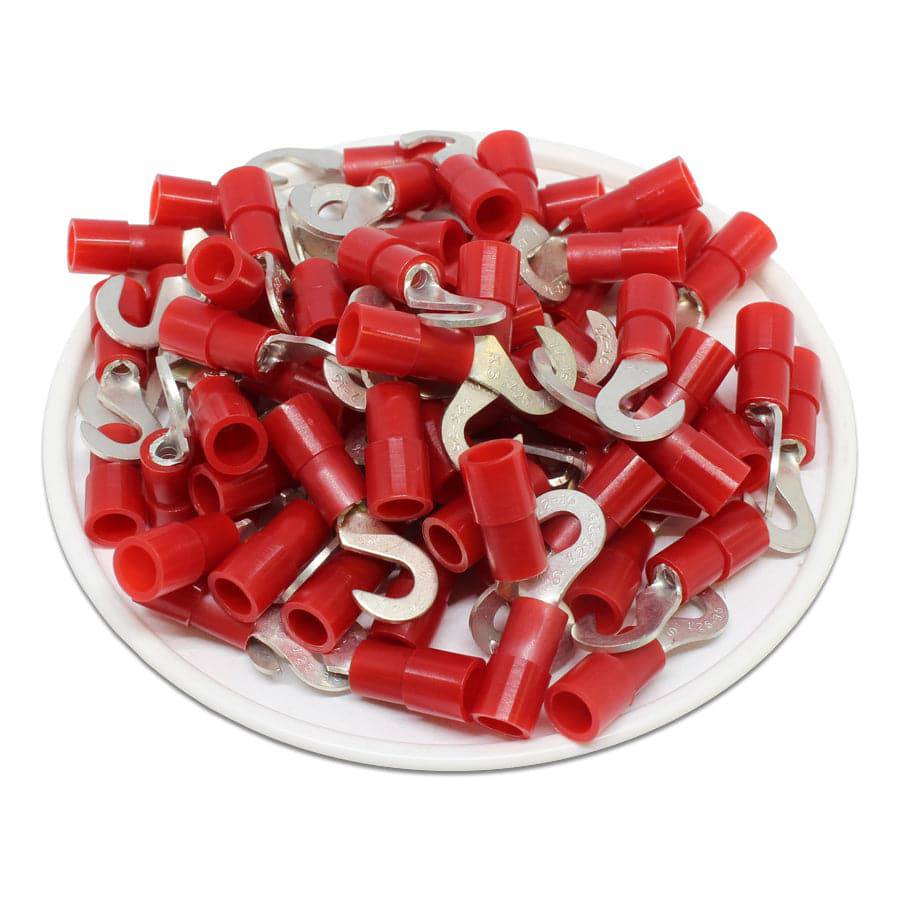

HNYB1-37 - Nylon Insulated Hook Terminals - 22-16 AWG - Red - 100/pack
Nylon insulated hook terminals combine the security of a ring terminal with the practicality of fork terminals. They allow the end user to quickly and easily terminate a connection without the need to remove the fastening screw.
Product Drawing:
None:
| Wire Range: | 22-16 AWG |
| T: | 0.03" (0.75mm) |
| L: | 0.86" (21.8mm) |
| F: | 0.28" (7.0mm) |
| E: | 0.43" (11.0mm) |
| W: | 0.32" (8.0mm) |
| D: | 0.16" (4.0mm) |
| D1: | 0.07" (1.7mm) |
| D2: | 0.15" (3.7mm) |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | Nylon |
| Stud Size: | #6 Stud |
| Temperature Rating: | 150oC - 600 Volts |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
Documents
Click to view product spec sheet:Videos
Click below to check out our YouTube channel!$3.48
Original: $11.60
-70%HNYB1-37 - Nylon Insulated Hook Terminals - 22-16 AWG - Red - 100/pack—
$11.60
$3.48Product Information
