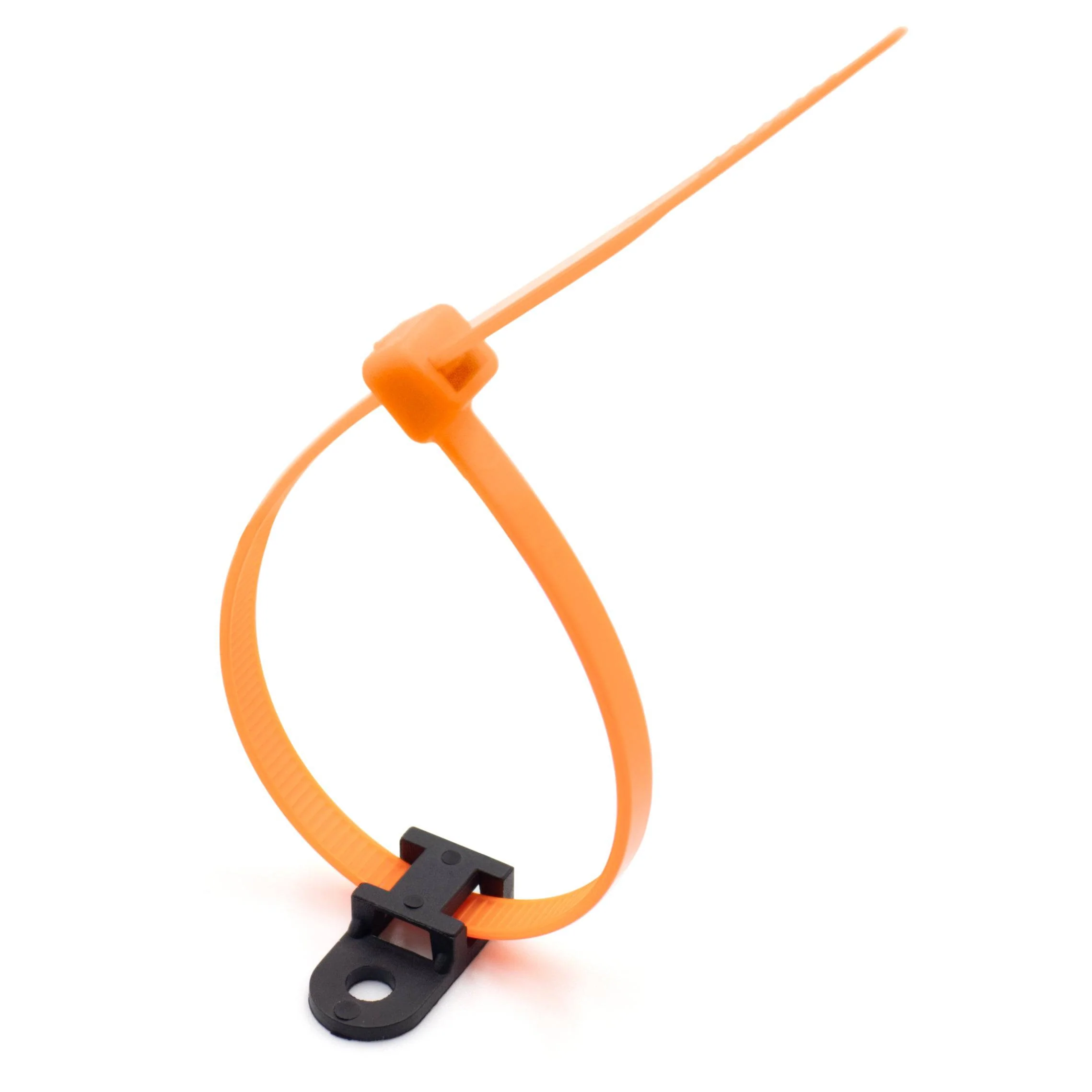

Product image 2
HomeStore

HC0LB - Black Nylon Saddle Tie Mounts, Dimensions: 3/4"L x 3/8"W, 100 Pieces

HC0LB - Black Nylon Saddle Tie Mounts, Dimensions: 3/4"L x 3/8"W, 100 Pieces

Saddle Tie Mounts provide a saddle for wire/cable runs. They are designed for maximum stability when securing bundles of wires/cables.

Dimensions & Features:

Size (LxWxH): 0.77 x 0.37 x 0.20"
Color: Black
H: 5.0mm (0.20")
L: 19.6mm (0.77")
W: 9.5mm (0.37")
T (Cable Tie Slot Width):
5.2mm (0.20")
B (Fixed Hole Size): 4.5mm (0.18")
Mounting: Screw Mounted
Material: UL Approved 94UV-2 Nylon
Environment: Indoor
Flammability (Fire Rating): UL 94V-2
Gamma Radiation: 1x10 Rads
Temp Rating: -400°F to 185°F (-240°C to 85°C)
UL Recognized: No
RoHS Compliant: Yes
CE Certified: Yes

Technical Drawing:

Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:

Videos

Click below to check out our YouTube channel!

$1.07

Original: $3.56

-70%
