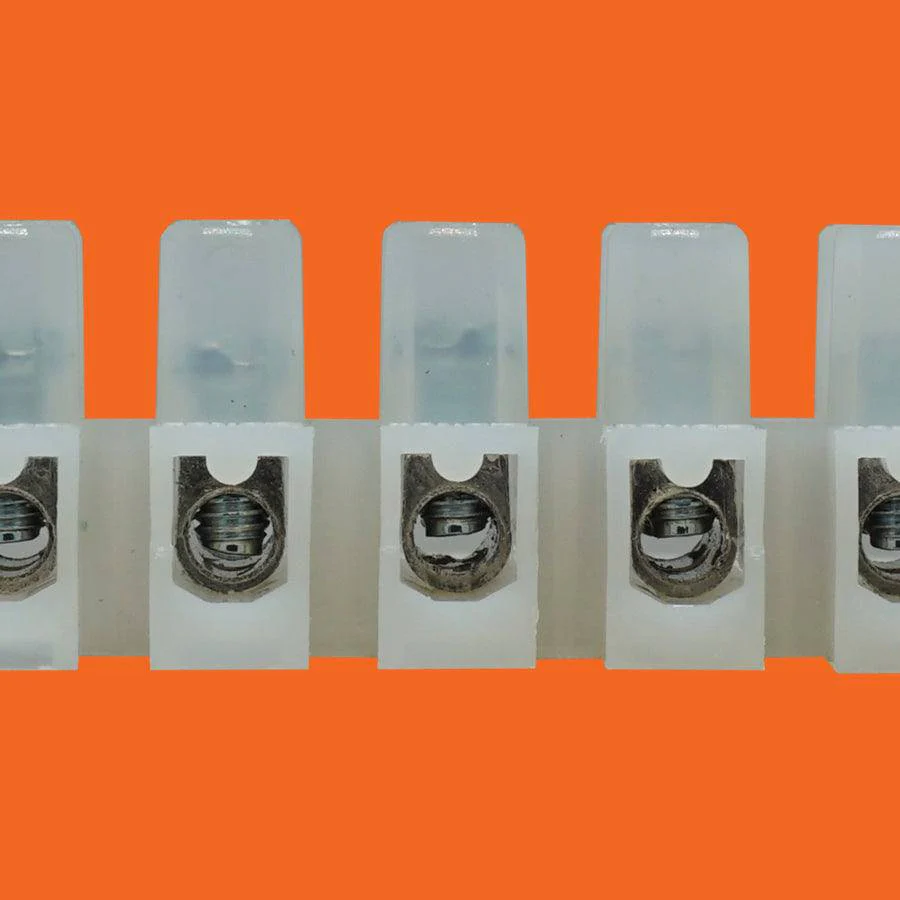

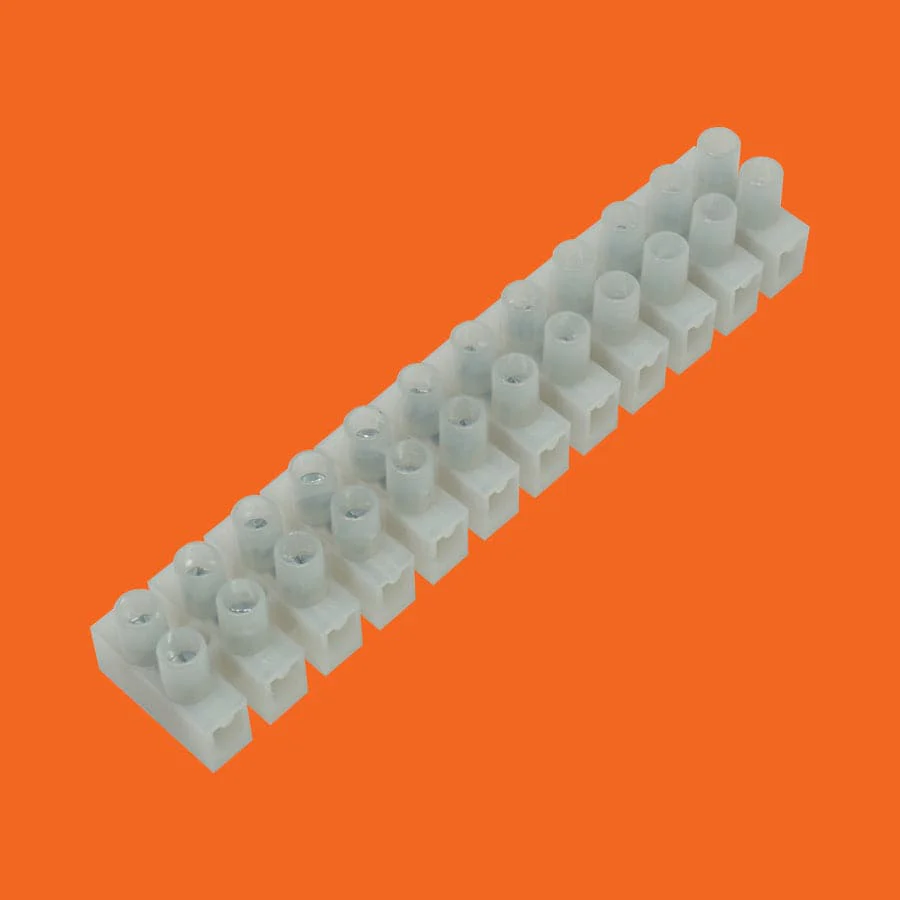

22 to 12 AWG Barrier Strip - 300v, 20A, 12 Poles, 8mm Pitch #GT1450B-8

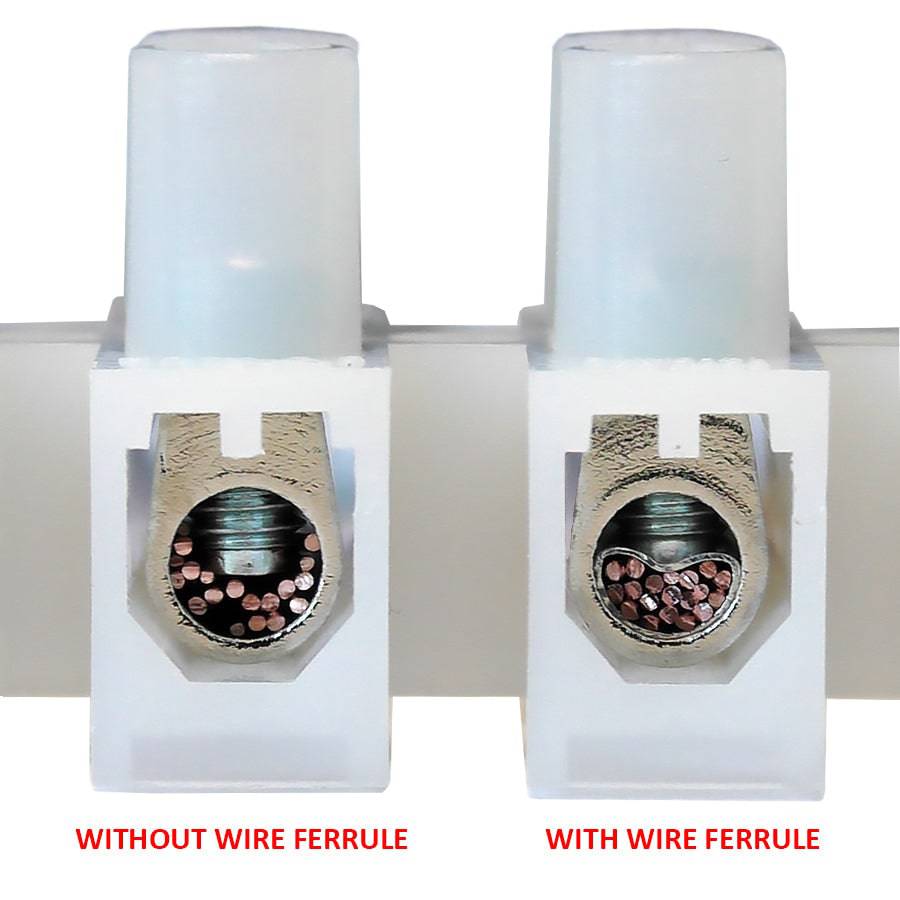

Terminal strips are used to fasten or terminate wire. This can be done by placing bare/exposed wire under the screws/poles and screwing them down. However, use of a wire ferrule is encouraged to prevent the wire from fraying.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire AWG: | 22-12 AWG |
| Stripping Length: | 7-8mm |
| Pitch: | 8mm (0.31") |
| A: | 92.7mm (3.64") |
| B: | 17.7mm (0.70") |
| C: | 15.5mm (0.61") |
| D: | 8.0mm (0.31") |
| E: | 3.0mm (0.12") |
| F: | 5.5mm (0.22") |
| Number of Poles: | 12 Poles |
| Wire Protector: | No |
| Material: | Polyamide (PA66) |
| Electrical Rating: | 300 Volts |
| Amp Rating: | 20AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!$4.95
