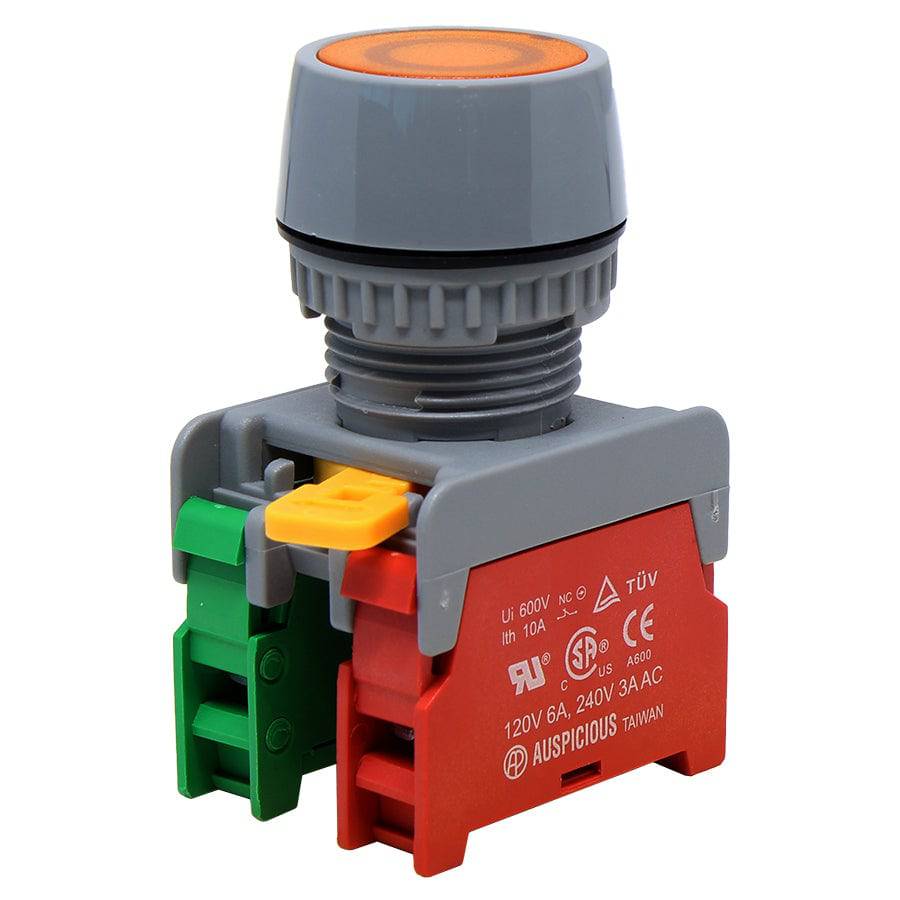

GPF22-1O/C-YL - 1O/C- 22mm Push On/Off Button Switch - Yellow
Toggle flat head push buttons operate differently than standard push buttons. Typically, when a button is pressed down the electrical circuit connection is opened or closed only as long as that button is held down. Once the button is released, the connection then returns to its original state. When toggle buttons are pressed, the connection opens or closes and remains that way until the button is pressed a second time.
Dimensions & Features:
None
Dimensions & Features:
| Type: | Illuminated Flat Head Push Button |
| Mounting Hole Size: | 22mm |
| Color: | Yellow |
| Type of Contact: | 1O/C |
| Number of Contacts: | 2 |
| Voltage Rating: | 240V |
| Enclosure Material: | Reinforced Thermoplastic |
| Contact Material: | Silver |
| Protection Degree: | IP 65 |
| Storage Temperature: | -40oC to 80oC |
| Operating Temperature: | -25oC to 70oC |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Cross References
Cross Reference Parts:None
Documents
Click to view the product spec sheet:Videos
