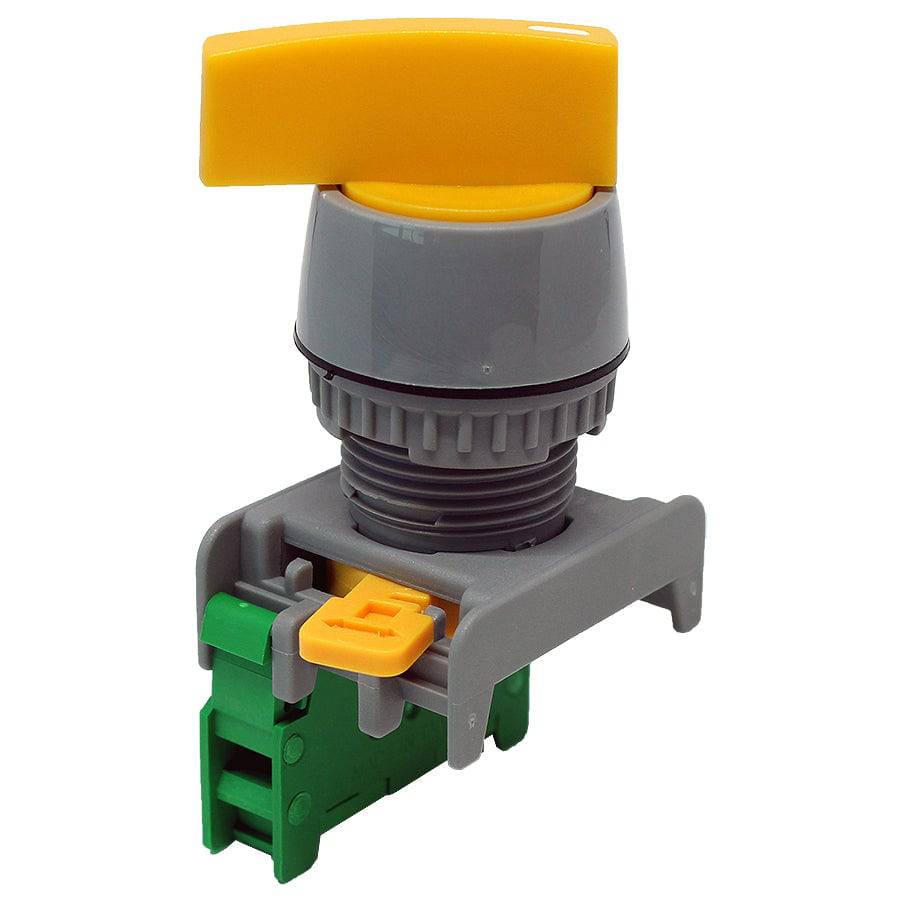

GLCS22-1/O-YL - Long Twist Knob Switch - 1 Contact (1/O) - 2 Positions (0-1) - Yellow
A push button switch consists of a simple electric switch mechanism which controls some aspect of a machine or process.
Dimensions & Features:
None
Dimensions & Features:
| Type: | Long Twist Knob Switch |
| Mounting Hole Size: | 22mm |
| Color: | Yellow |
| Type of Contact: | 1/O |
| Number of Contacts: | 1 |
| Positions: | 0-1 |
| Voltage Rating: | 240V |
| Enclosure Material: | Reinforced Thermoplastic |
| Contact Material: | Silver |
| Protection Degree: | IP 65 |
| Storage Temperature: | -40oC to 80oC |
| Operating Temperature: | -25oC to 70oC |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Cross References
Cross Reference Parts:None
Documents
Click to view the product spec sheet:Videos
Click to view our YouTube channel!$1.32
Original: $4.40
-70%GLCS22-1/O-YL - Long Twist Knob Switch - 1 Contact (1/O) - 2 Positions (0-1) - Yellow—
$4.40
$1.32Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
A push button switch consists of a simple electric switch mechanism which controls some aspect of a machine or process.
Dimensions & Features:
None
Dimensions & Features:
| Type: | Long Twist Knob Switch |
| Mounting Hole Size: | 22mm |
| Color: | Yellow |
| Type of Contact: | 1/O |
| Number of Contacts: | 1 |
| Positions: | 0-1 |
| Voltage Rating: | 240V |
| Enclosure Material: | Reinforced Thermoplastic |
| Contact Material: | Silver |
| Protection Degree: | IP 65 |
| Storage Temperature: | -40oC to 80oC |
| Operating Temperature: | -25oC to 70oC |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Cross References
Cross Reference Parts:None
Documents
Click to view the product spec sheet:Videos
Click to view our YouTube channel!
