FSNYDL2-37 - Nylon Flange Spade Terminal Double Crimp - 16-14 AWG - Blue

FSNYDL2-37 - Nylon Flange Spade Terminal Double Crimp - 16-14 AWG - Blue

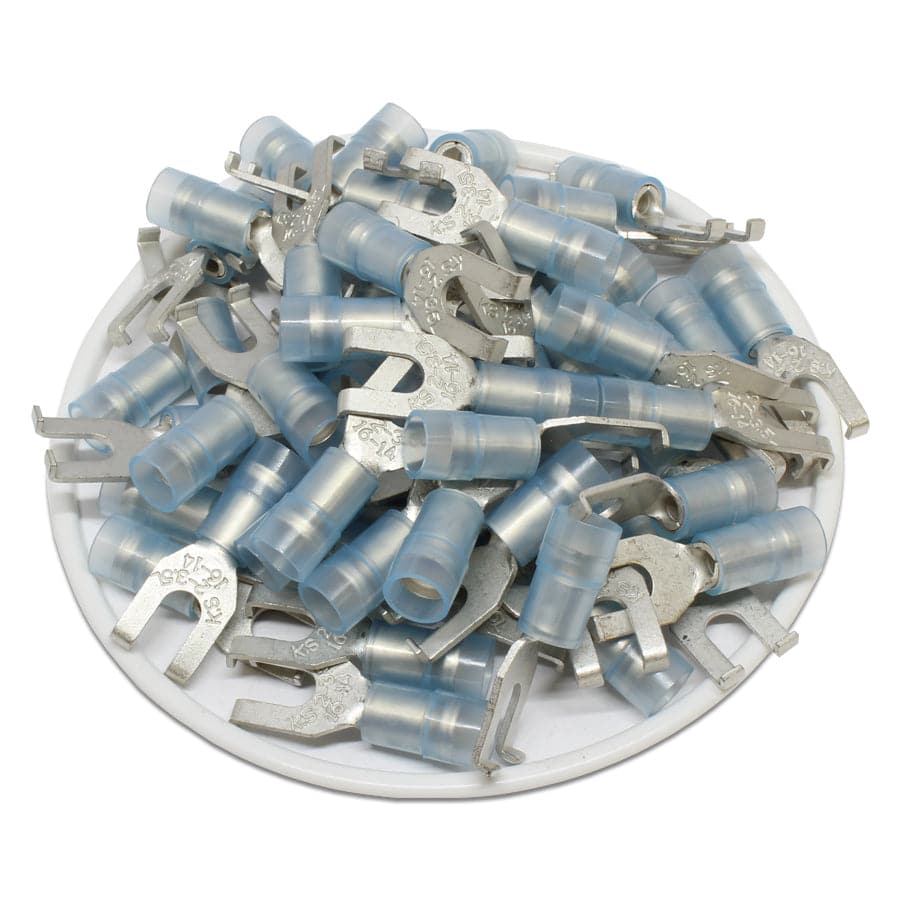

Nylon insulated spade terminals lock in place for tight and secure connection in cramped spaces. They allow the end user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations ensure good wire contact and maximum tensile strength. UL Flammability UL94V-2

Dimensions & Features:

Wire Size: 16-14 AWG
Stud Size: #6 Stud
Color: Blue
T: 0.8mm (0.03")
L: 24mm (0.95")
F: 7.2mm (0.28")
E: 11mm (0.43")
W: 8.5mm (0.34")
A: 1.5mm (0.06")
D: 4.5mm (0.18")
D1: 2.3mm (0.09")
D2: 3.7mm (0.15")
Seam: Brazed
Terminal Material: Tin-Plated Copper
Max Electrical Rating: 105°C - 600 Volts
Max Amp Rating: 30A
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Technical Drawing:



Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:
