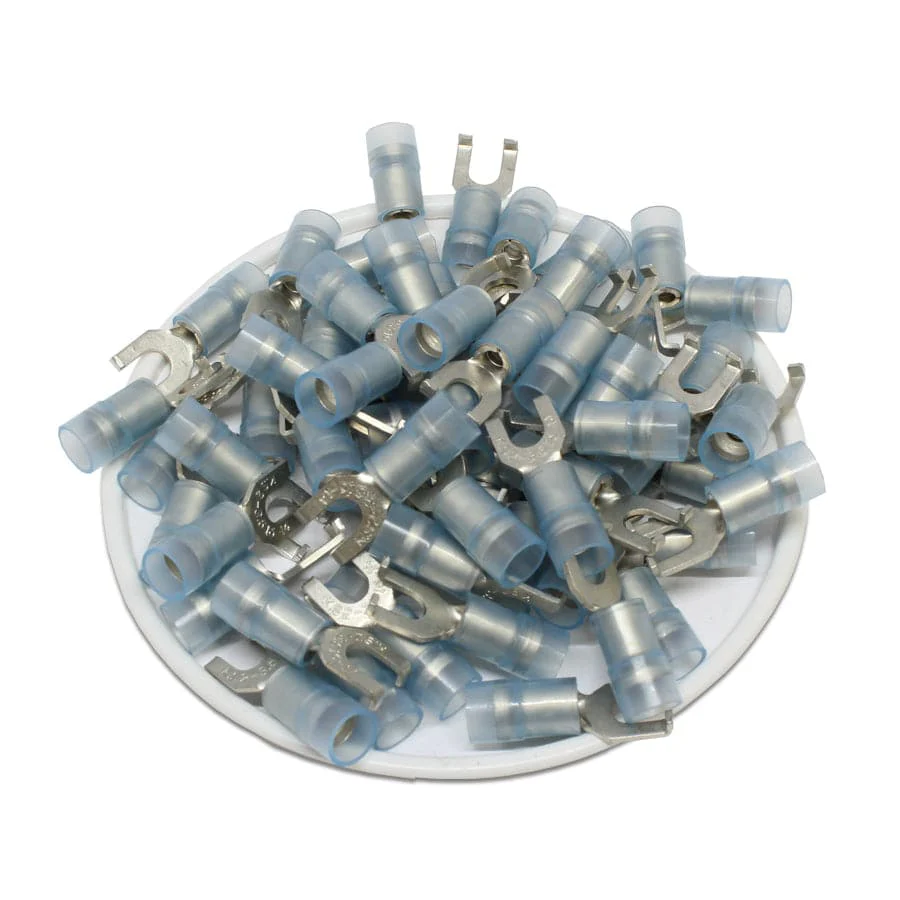

FSNYD2-37 - Nylon Flange Spade Terminal Double Crimp - 16-14 AWG - Blue
Nylon insulated spade terminals lock in place for tight and secure connection in cramped spaces. They allow the end user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations ensure good wire contact and maximum tensile strength. UL Flammability UL94V-2
Dimensions & Features:
Technical Drawing:
None
Dimensions & Features:
| Wire Size: | 16-14 AWG |
| Stud Size: | #6 Stud |
| Color: | Blue |
| T: | 0.8mm (0.03") |
| L: | 20.5mm (0.81") |
| F: | 5.2mm (0.21") |
| E: | 11mm (0.43") |
| W: | 7.5mm (0.30") |
| A: | 1.5mm (0.06") |
| D: | 4.5mm (0.18") |
| D1: | 2.3mm (0.09") |
| D2: | 3.7mm (0.15") |
| Seam: | Brazed |
| Terminal Material: | Tin-Plated Copper |
| Max Electrical Rating: | 105°C - 600 Volts |
| Max Amp Rating: | 30A |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross Reference Parts:None
