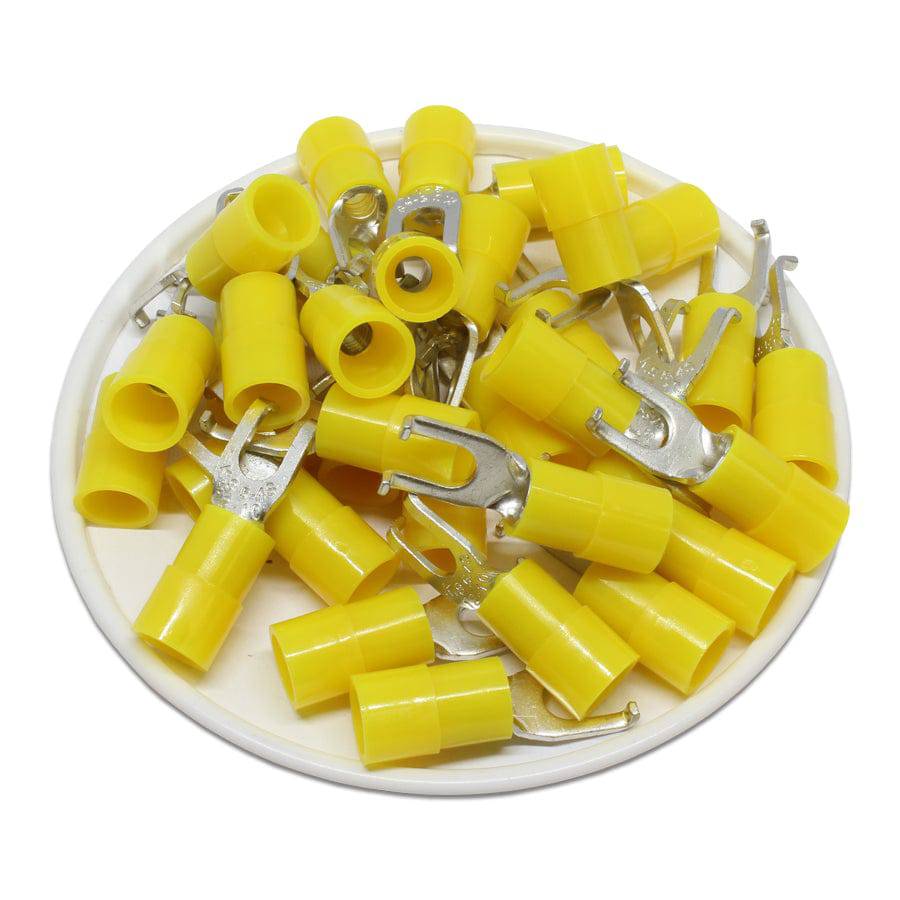

FSNYBS5-4 - Nylon Insulated Flange Spade Terminals - 12-10 AWG
Nylon insulated spade terminals lock in place for tight and secure connection in cramped spaces. They allow the end user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations ensure good wire contact and maximum tensile strength. UL Flammability UL94V-2
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 12-10 AWG |
| Stud Size: | #8 |
| Color: | Yellow |
| Insulation Material: | Nylon |
| Terminal Material: | Tin-Plated Copper |
| Max Electrical Rating: | 105oC - 600 Volts |
| Maxed Electrical Current: | 50AMP |
| T: | 1.0mm (0.04") |
| L: | 25.5mm (1.00") |
| F: | 6.2mm (0.24") |
| E: | 13.0mm (0.51") |
| W: | 7.6mm (0.30") |
| A: | 1.5mm (0.06") |
| D: | 6.4mm (0.25") |
| D1: | 3.4mm (0.13") |
| D2: | 4.3mm (0.17") |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
