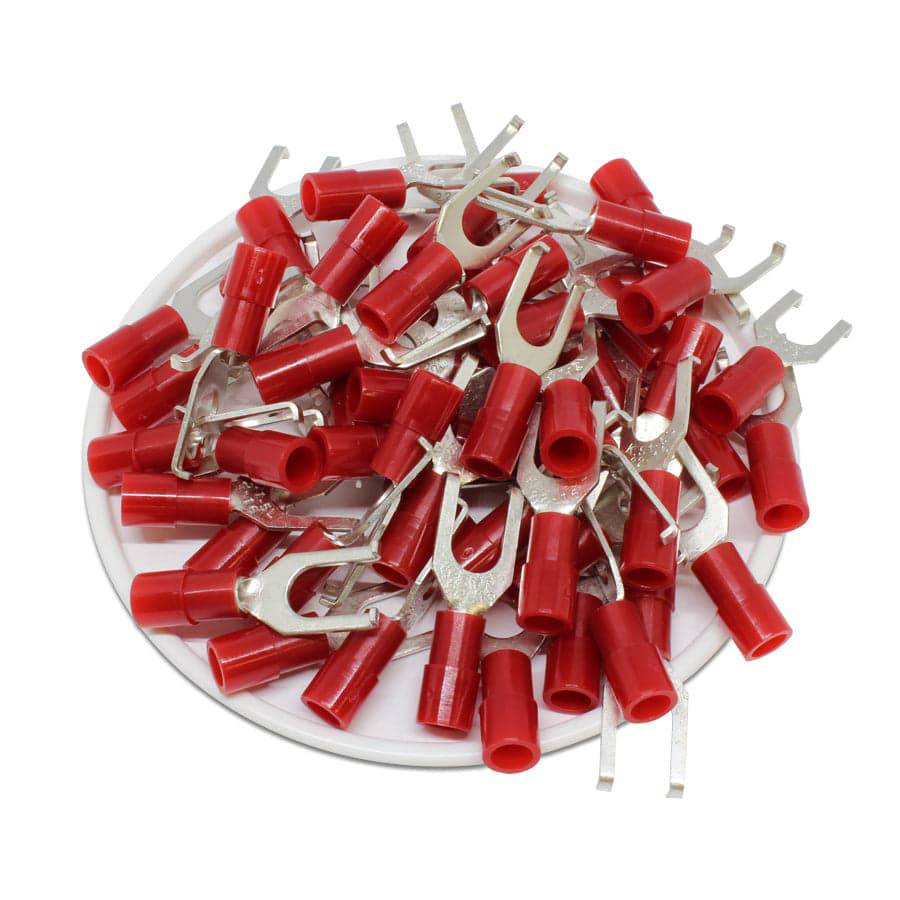

FSNYBL1-5 - 22 to 16 AWG Nylon Insulated Flange Spade Terminals, #10 Stud, 100 Pieces
Nylon insulated spade terminals lock in place for tight and secure connection in cramped spaces. They allow the end user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations ensure good wire contact and maximum tensile strength. UL Flammability UL94V-2
Dimensions & Features:
Product Drawing:
McMaster-Carr: 7869K43
Tyco AMP: RA18-10FS
Dimensions & Features:
| Wire Size: | 22-16 AWG |
| Stud Size: | #10 |
| Color: | Red |
| Terminal Insulation: | Nylon |
| Terminal Material: | Tin-Plated Copper |
| Max Electrical Temperature: | 105oC |
| Max Electrical Rating: | 600 Volts |
| Max Electrical Current: | 18AMP |
| T: | 0.7mm (0.03") |
| L: | 25.5mm (1.00") |
| F: | 7.2mm (0.28") |
| E: | 11.0mm (0.43") |
| W: | 8.5mm (0.34") |
| A: | 1.5mm (0.06") |
| D: | 4.0mm (0.16") |
| D1: | 1.7mm (0.07") |
| D2: | 5.3mm (0.") |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:McMaster-Carr: 7869K43
Tyco AMP: RA18-10FS
Documents
Click to view product spec sheet:Videos
