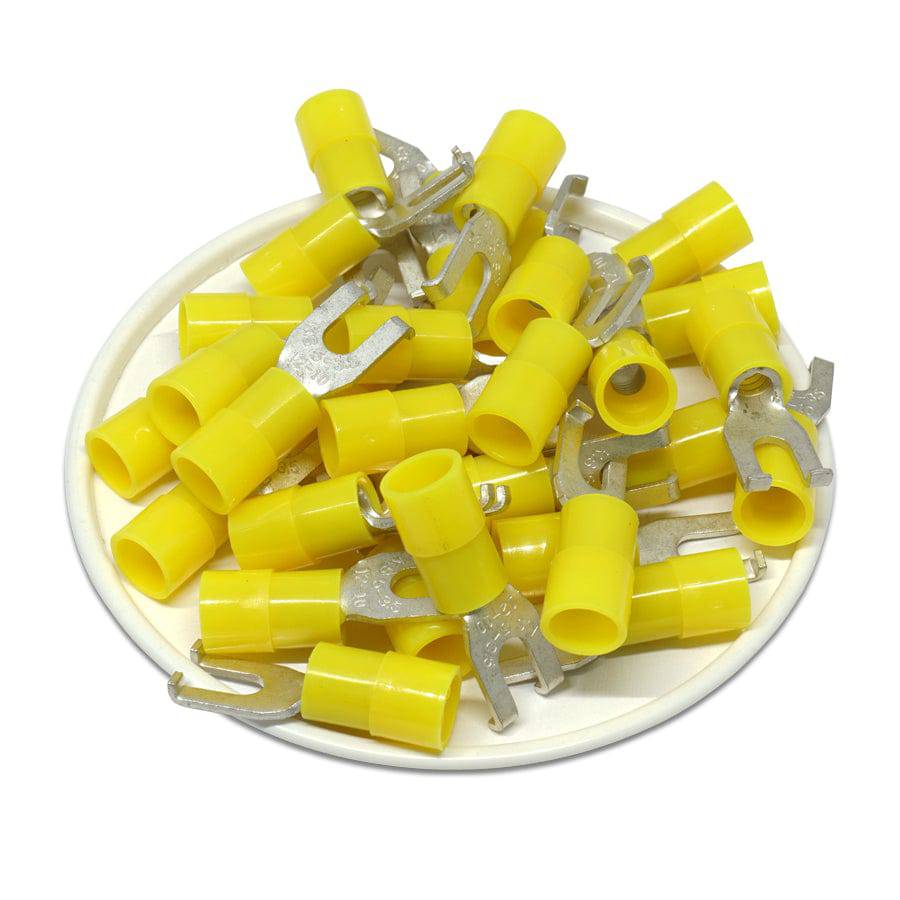

FSNYB5-3.7 - 12 to 10 AWG Nylon Insulated Flange Spade Terminals, #6 Stud, 50 Pieces
Nylon insulated spade terminals lock in place for tight and secure connection in cramped spaces. They allow the end user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations ensure good wire contact and maximum tensile strength. UL Flammability UL94V-2
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 12-10 AWG |
| Stud Size: | #6 |
| Color: | Yellow |
| Insulation Material: | Nylon |
| Terminal Material: | Tin-Plated Copper |
| Max Electrical Rating: | 105oC - 600 Volts |
| Maxed Electrical Current: | 50AMP |
| T: | 1.0mm (0.04") |
| L: | 27.0mm (1.06") |
| F: | 7.5mm (0.30") |
| E: | 13.0mm (0.51") |
| W: | 8.5mm (0.34") |
| A: | 1.5mm (0.06") |
| D: | 6.4mm (0.25") |
| D1: | 3.4mm (0.13") |
| D2: | 3.7mm (0.15") |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!$9.39
Original: $31.30
-70%FSNYB5-3.7 - 12 to 10 AWG Nylon Insulated Flange Spade Terminals, #6 Stud, 50 Pieces—
$31.30
$9.39Product Information
