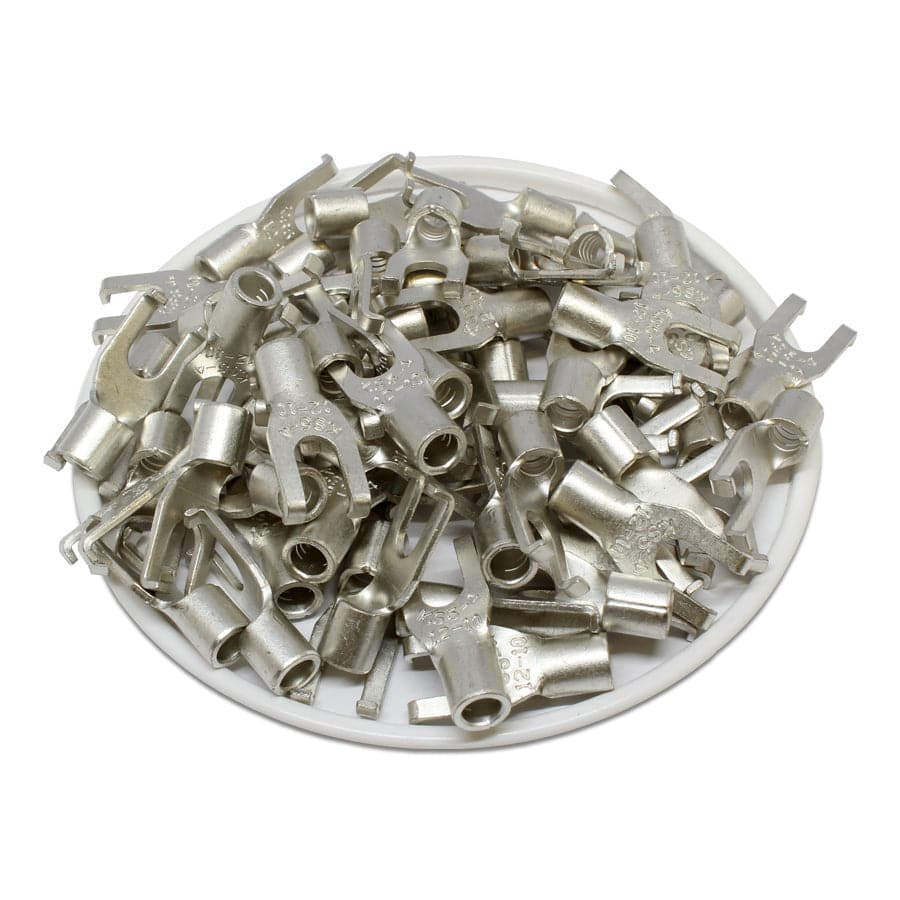

12-10 AWG Non Insulated Flange Spade Terminals, #8 Stud, UL Approved, 100 Pieces - FSNB5-4
NON INSULATED SPADE TERMINALS
Non insulated flange spade terminals lock in place for tight and secure connection in cramped spaces. They allow the end user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations ensure good wire contact and maximum tensile strength.
Dimensions & Features:
| Wire Size: | 12-10 AWG |
| Seam: | Brazed |
| Stud Size: | #8 |
| Terminal Material: | Tin-Plated Copper |
| Max Electrical Current: | 50AMP |
| T: | 1.0mm (0.04") |
| L: | 20.0mm (0.79") |
| F: | 7.5mm (0.30") |
| E: | 6.0mm (0.24") |
| W: | 8.5mm (0.34") |
| A: | 1.5mm (0.06") |
| D: | 5.6mm (0.22") |
| D1: | 3.4mm (0.13") |
| D2: | 4.3mm (0.15") |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:
Videos
Check out our YouTube channel!
