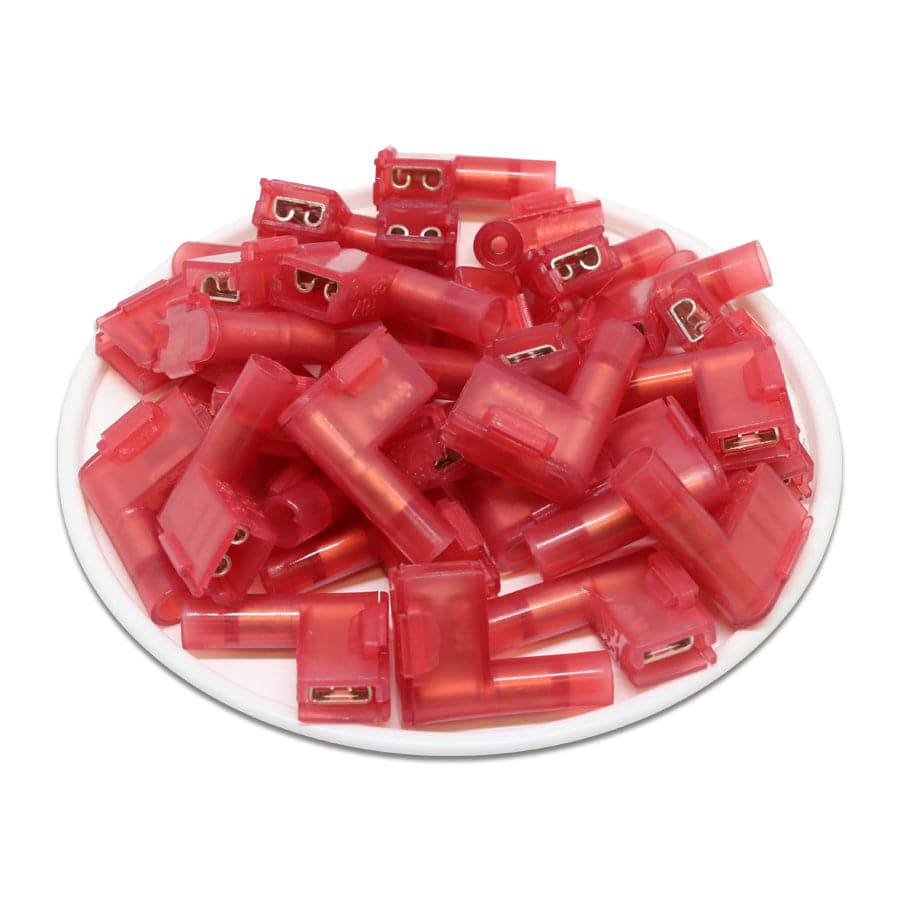

FLDNYDX1-187(5) - Double Crimp Nylon Insulated Quick Disconnects - 22-16 AWG
Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 22-16 AWG |
| Color: | Red |
| Insulation Material: | Nylon |
| Terminal Material: | Tin-Plated Brass |
| Crimp: | Double |
| Electrical Rating: | 105°C - 300 Volts |
| Current Rating: | 3-7AMP |
| Nema Tab: | 0.02" x 0.18" (0.5mm x 4.75mm) |
| L: | 19.0mm (0.75") |
| F: | 6.2mm (0.24") |
| W: | 5.0mm (0.19") |
| C: | 1.6mm (0.06") |
| B: | 11.0mm (0.43") |
| D: | 3.5mm (0.14") |
| UL Recognized: | Yes |
| RoHS Compliant: | Yes |
| CE Certified: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
