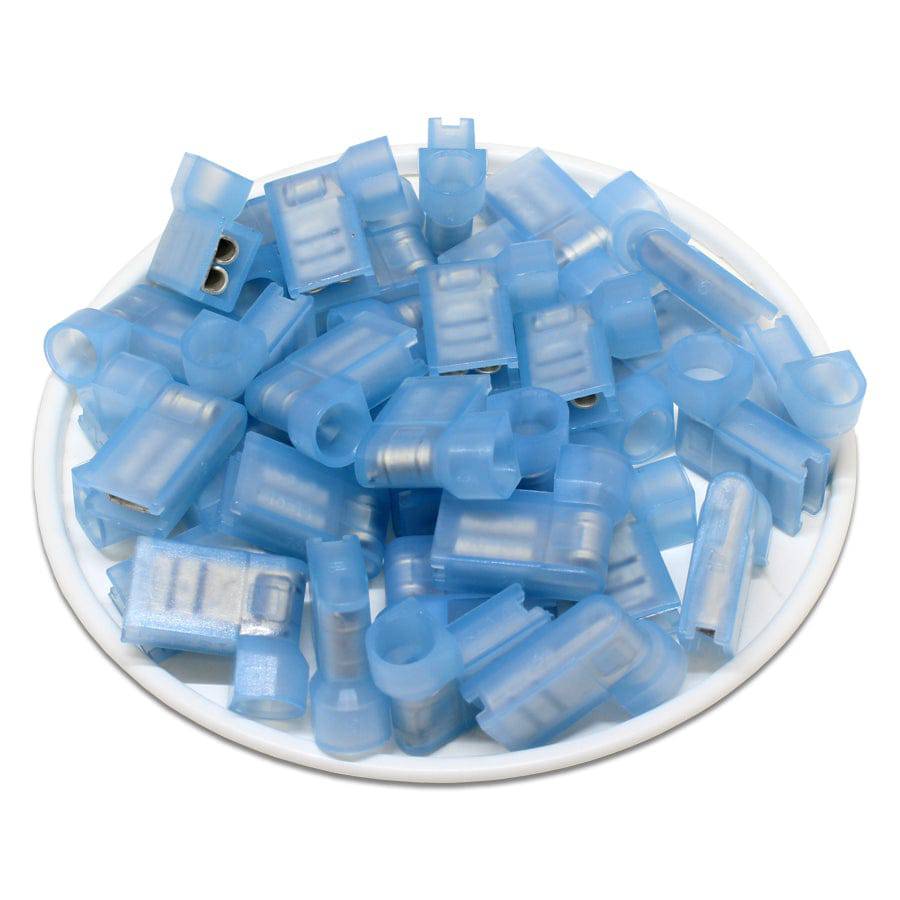

FLDNY2-187(5) Nylon Insulated Flag Quick Disconnect - 16-14AWG
Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 16-14 AWG |
| Color: | Blue |
| Terminal Material: | Brass |
| Terminal Insulation: | Nylon |
| Max Electrical Rating: | 105°C - 300 Volts |
| Max Electrical Current: | 15 AMP |
| W: | 5.0mm (0.19") |
| F: | 7.0mm (0.27") |
| L: | 15.2mm (0.59") |
| D1: | 2.1mm (0.08") |
| T: | 0.4mm (0.01") |
| Nema Tab: | 0.5 x 4.75mm (0.02 x 0.18") |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!$4.59
Original: $15.30
-70%FLDNY2-187(5) Nylon Insulated Flag Quick Disconnect - 16-14AWG—
$15.30
$4.59Product Information
