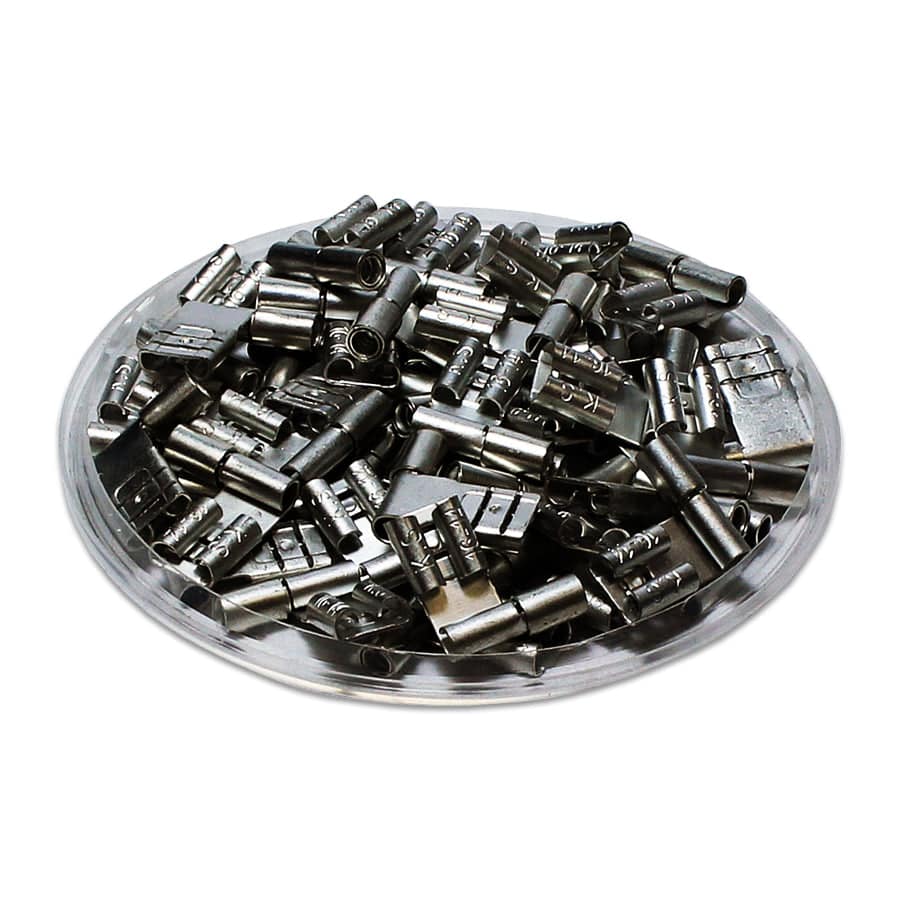

FLDNDX2-250 - 90° Non Insulated Quick Disconnects - 16-14AWG
Flag terminals are designed for use in tight spaces. The double crimp sleeve and serrations ensures a secure hold onto the wire. This item can be easily installed and removed without the use of tools.
None:
Dimensions & Features:
| Wire Range: | 16-14AWG |
| Terminal Material: | Tin-Plated Brass |
| Current: | 15AMP |
| Crimp: | Double |
| NEMA Tab: | 0.8mm x 6.35 (0.03" x 0.25) |
| W: | 6.6mm (0.25") |
| F: | 7.6mm (0.30") |
| L: | 13.9mm (0.55") |
| C: | 2.2mm (0.06") |
| B: | 6.5mm (0.26") |
Technical Drawing:
Cross References
Cross References:None:
Documents
Click to view product spec sheet:Videos
Click here to check out our YouTube channel:$3.86
Original: $12.88
-70%FLDNDX2-250 - 90° Non Insulated Quick Disconnects - 16-14AWG—
$12.88
$3.86Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Flag terminals are designed for use in tight spaces. The double crimp sleeve and serrations ensures a secure hold onto the wire. This item can be easily installed and removed without the use of tools.
None:
Dimensions & Features:
| Wire Range: | 16-14AWG |
| Terminal Material: | Tin-Plated Brass |
| Current: | 15AMP |
| Crimp: | Double |
| NEMA Tab: | 0.8mm x 6.35 (0.03" x 0.25) |
| W: | 6.6mm (0.25") |
| F: | 7.6mm (0.30") |
| L: | 13.9mm (0.55") |
| C: | 2.2mm (0.06") |
| B: | 6.5mm (0.26") |
Technical Drawing:
Cross References
Cross References:None:
Documents
Click to view product spec sheet:Videos
Click here to check out our YouTube channel:
