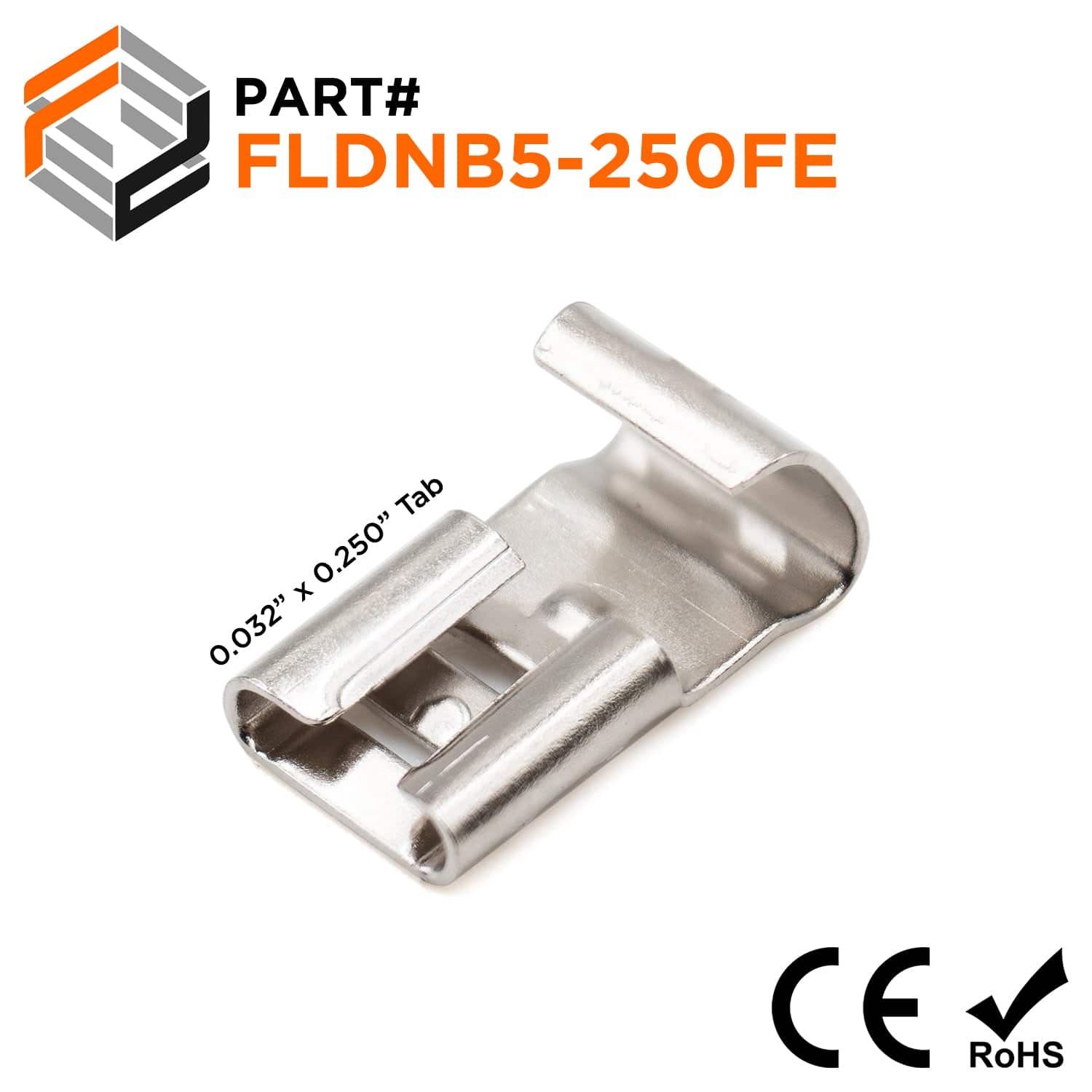

FLDNB5-250FE - Stainless Steel Quick Disconnect - 12-10 AWG - High Temperature - Nickel Plated
Non insulated flag quick disconnects create a splice when fitted together or can terminate a connection to a terminal block. Quick disconnects be connected or disconnected without damage to the terminal or wire. without the use of tools.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 12-10 AWG |
| L: | 14.5mm (.571") |
| F: | 7.6mm (0.299") |
| W: | 6.6mm (0.260") |
| B: | 7.5mm (0.295") |
| Nema Tab: | 0.8mm x 6.35mm (0.032" x 0.250") |
| Material: | Nickel Plated Steel |
| Max Electrical Current: | 24A |
| UL Approved: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
