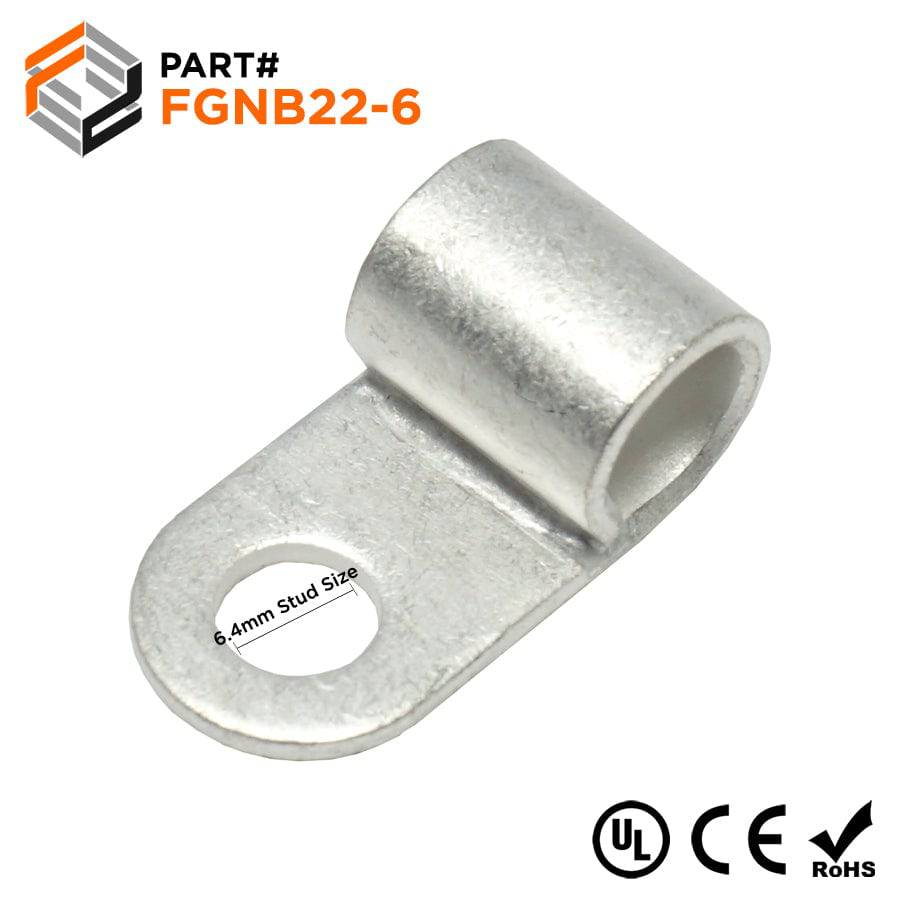

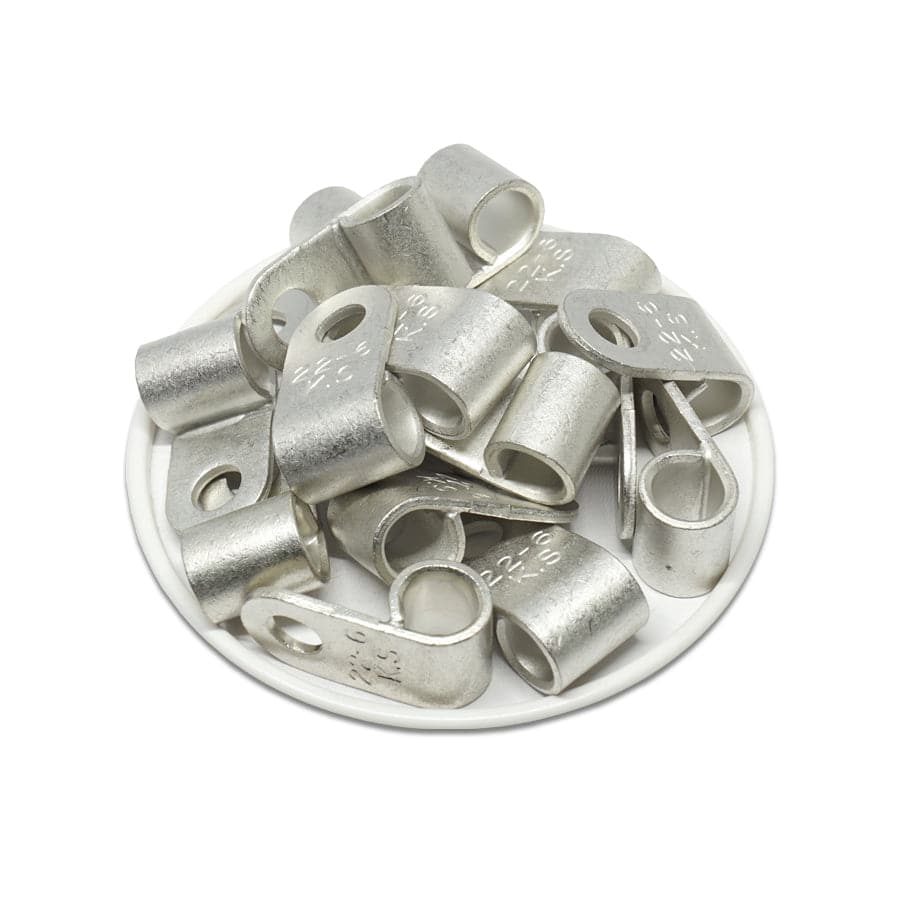

FGNB22-6 - Non Insulated Flag Terminal - Ring Tongue - 4AWG
Non-insulated flag terminals with ring tongue enable the user to create a 90° connection without bending the conductor..
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
| Wire Size: | 4 AWG |
| Stud Size: | 1/4" |
| T: | 1.7mm (0.07") |
| L: | 28.2mm (1.11)") |
| F: | 9.7mm (0.36") |
| W: | 14.0mm (0.56") |
| D: | 11.5mm (0.45") |
| D1: | 7.7mm (0.30") |
| D2: | 6.4mm (0.25") |
| Material: | Tin-Plated Copper |
| Temperature Rating: | 105oC |
| Volt Rating: | 600 Volts |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!$33.04
