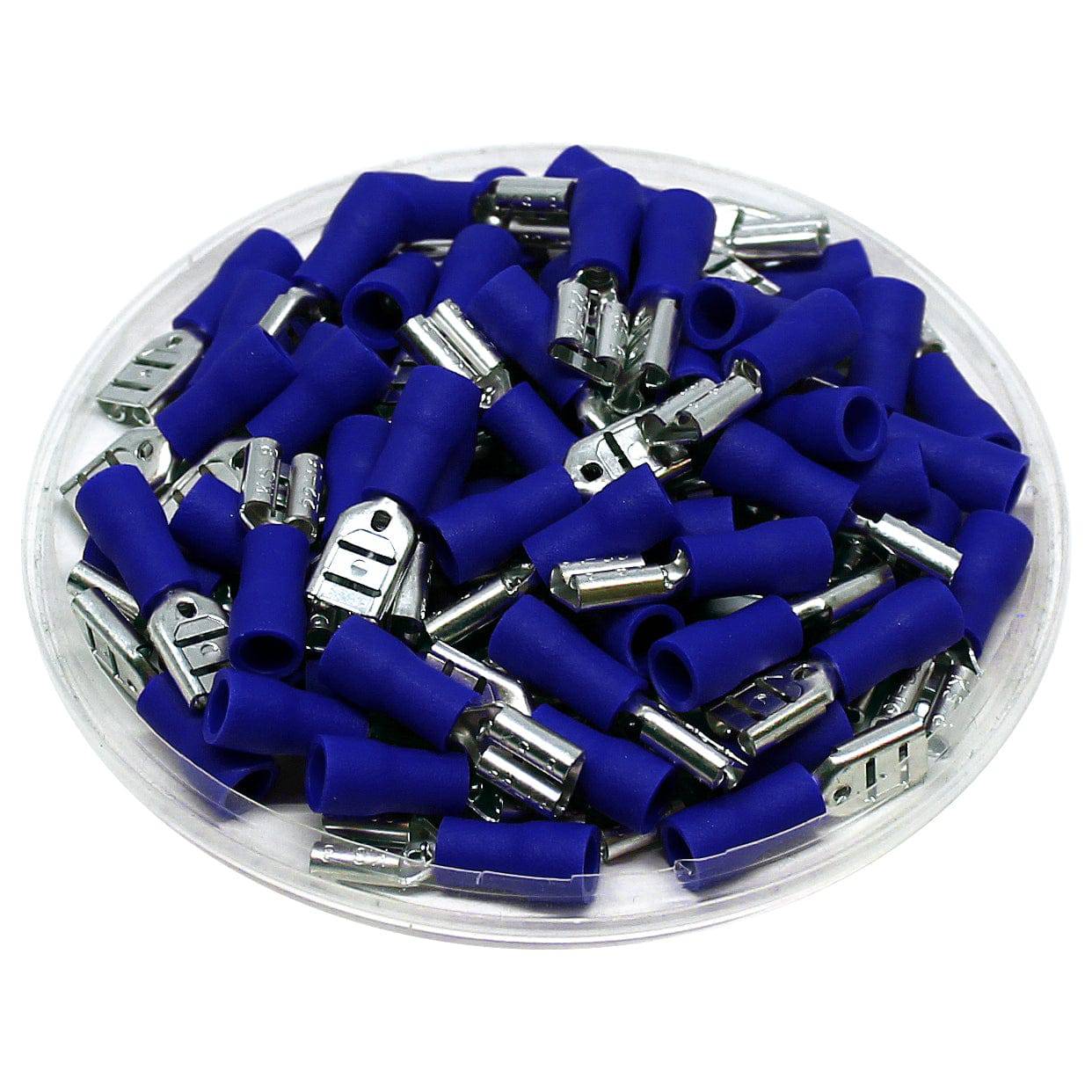

FDV2-250 - 16 to 14 AWG Vinyl PVC Insulated Quick Disconnects, Female, Blue, Fully Insulated, 100 Pieces
Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 16-14 AWG |
| Terminal Material: | Tin-Plated Brass |
| Insulation Material: | Vinyl |
| Color: | Blue |
| Nema Tab: | 0.8 x 6.35mm (0.032 x 0.25") |
| Temperature Rating: | 75oC |
| Voltage Rating: | 300 Volts |
| T: | 0.40mm (0.02") |
| L: | 20.5mm (0.81") |
| F: | 7.5mm (0.30") |
| B: | 10.0mm (0.39") |
| W: | 6.6mm (0.26") |
| D: | 4.5mm (0.18") |
| C: | 2.3mm (0.03") |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!$1.95
Original: $6.50
-70%FDV2-250 - 16 to 14 AWG Vinyl PVC Insulated Quick Disconnects, Female, Blue, Fully Insulated, 100 Pieces—
$6.50
$1.95Product Information
